Posted on

PFMT455S-600, 600A

PFMT455S-600
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

455S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-600 600 2xM16
  • 1575
  • 660
  • 381
  • 686
  • 711
 912(414.5)
  • (62)
  • (26)
  • (15)
  • (27)
  • (28)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-500, 500A

PFMT455S-500
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

455S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-500 500 2xM16
  • 1575
  • 660
  • 381
  • 686
  • 711
 912(414.5)
  • (62)
  • (26)
  • (15)
  • (27)
  • (28)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-600, 600A

PFMT355S-600
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

355S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-600 600 2xM16
  • 1575
  • 508
  • 381
  • 686
  • 559
 695(315.9)
  • (62)
  • (20)
  • (15)
  • (27)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-500, 500A

PFMT355S-500
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

355S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-500 500 2xM16
  • 1575
  • 508
  • 381
  • 686
  • 559
 695(315.9)
  • (62)
  • (20)
  • (15)
  • (27)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-600, 600A

PFMT255S-600
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
255S-300
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-600 600 2xM16
  • 1575
  • 456
  • 381
  • 686
  • 508
480(218.2)
  • (62)
  • (18)
  • (15)
  • (27)
  • (20)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-500, 500A

PFMT255S-500
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
255S-300
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-500 500 2xM16
  • 1575
  • 456
  • 381
  • 686
  • 508
480(218.2)
  • (62)
  • (18)
  • (15)
  • (27)
  • (20)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT444S-600, 600A

PFMT444S-600
4-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
444s-600
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
  • J
  • K
PFMT444S-600 600 2xM16
  • 965
  • 660
  • 203
  • 662
  • 698
  • 330
  • 315
  • 63.5
  • 533
  • 130
  • 55
 435(197.7)
  • (38)
  • (26)
  • (8)
  • (26)
  • (27.5)
  • (13)
  • (12.4)
  • (2.5)
  • (21)
  • (5.1)
  • (2.2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT444S-500, 500A

PFMT444S-500
4-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

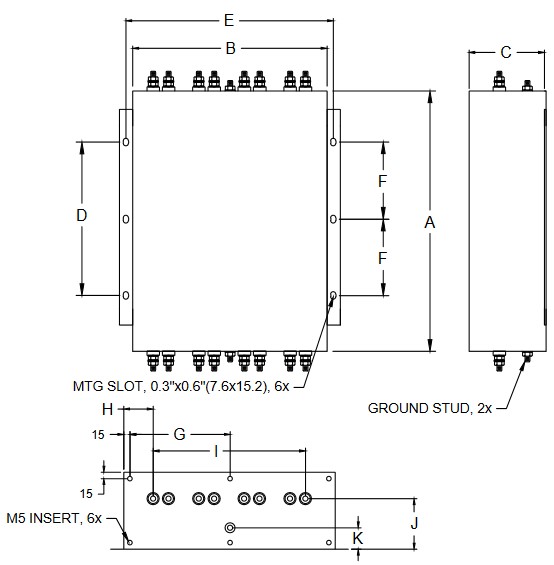

444s-500
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
  • J
  • K
PFMT444S-500 500 2xM16
  • 965
  • 660
  • 203
  • 662
  • 698
  • 330
  • 315
  • 63.5
  • 533
  • 130
  • 55
 435(197.7)
  • (38)
  • (26)
  • (8)
  • (26)
  • (27.5)
  • (13)
  • (12.4)
  • (2.5)
  • (21)
  • (5.1)
  • (2.2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-600, 600A

PFMT333S-600
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
333s-600
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
  • J
  • K
PFMT333S-600 600 2xM16
  • 965
  • 508
  • 203
  • 864
  • 547
  • 432
  • 239
  • 63.5
  • 381
  • 130
  • 55
 325(147.7)
  • (38)
  • (20)
  • (8)
  • (34)
  • (21.5)
  • (17)
  • (9.4)
  • (2.5)
  • (15)
  • (5.1)
  • (2.2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-500, 500A

PFMT333S-500
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

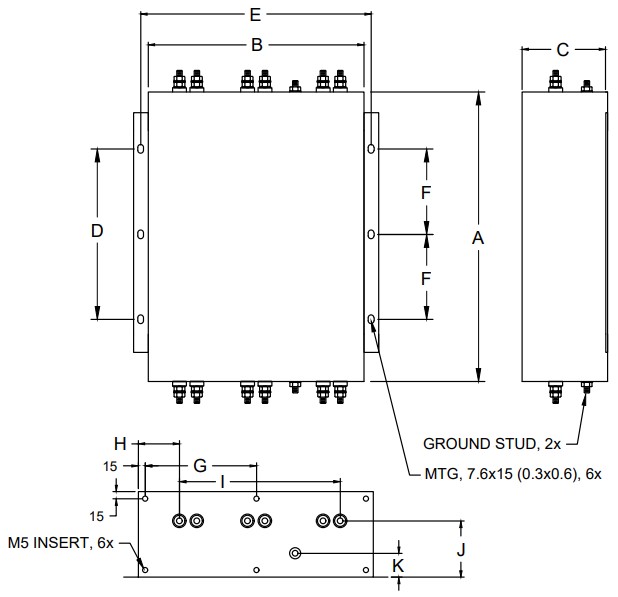

333s-500
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
  • J
  • K
PFMT333S-500 500 2xM16
  • 965
  • 508
  • 203
  • 864
  • 547
  • 432
  • 239
  • 63.5
  • 381
  • 130
  • 55
 325(147.7)
  • (38)
  • (20)
  • (8)
  • (34)
  • (21.5)
  • (17)
  • (9.4)
  • (2.5)
  • (15)
  • (5.1)
  • (2.2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-600, 600A

PFMT222S-600
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-600
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-600 600 2xM16
  • 965
  • 381
  • 203
  • 381
  • 419
  • 70
  • 241
  • 102
  • 190.5
 262(119)
  • (38)
  • (15)
  • (8)
  • (15)
  • (16.5)
  • (2.76)
  • (9.5)
  • (4)
  • (7.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-500, 500A

PFMT222S-500
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 500A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

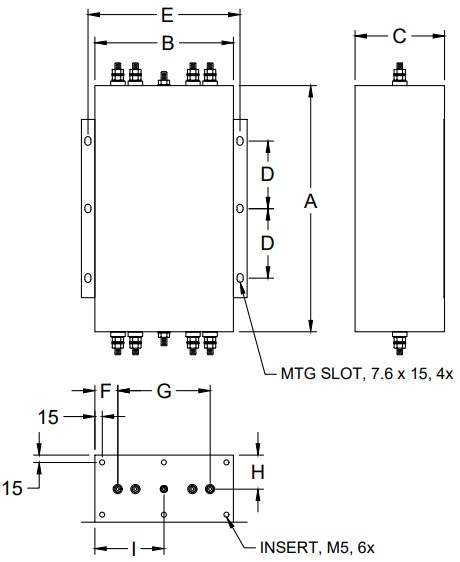

222s-500
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-500 500 2xM16
  • 965
  • 381
  • 203
  • 381
  • 419
  • 70
  • 241
  • 102
  • 190.5
 262(119)
  • (38)
  • (15)
  • (8)
  • (15)
  • (16.5)
  • (2.76)
  • (9.5)
  • (4)
  • (7.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-400, 400A

PFMT222S-400
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 400A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-400
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-400 400 M16
  • 711
  • 229
  • 178
  • 610
  • 269
  • 55
  • 119
  • 89
  • 114.5
 115(52.3)
  • (28)
  • (9)
  • (7)
  • (24)
  • (10.6)
  • (2.2)
  • (4.7)
  • (3.5)
  • (4.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-300, 300A

PFMT222S-300
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 300A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-300
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-300 300 M16
  • 711
  • 229
  • 178
  • 610
  • 269
  • 55
  • 119
  • 89
  • 114.5
 115(52.3)
  • (28)
  • (9)
  • (7)
  • (24)
  • (10.6)
  • (2.2)
  • (4.7)
  • (3.5)
  • (4.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-200, 200A

PFMT222S-200
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 200A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-200
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-200 200 M10
  • 406
  • 203
  • 140
  • 305
  • 243
  • 52
  • 99
  • 70
  • 101.5
 42(19)
  • (16)
  • (8)
  • (5.5)
  • (12)
  • (9.6)
  • (1.6)
  • (3.9)
  • (2.75)
  • (4)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-150, 150A

PFMT222S-150
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 150A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-150
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-150 150 M10
  • 406
  • 203
  • 140
  • 305
  • 243
  • 52
  • 99
  • 70
  • 101.5
 42(19)
  • (16)
  • (8)
  • (5.5)
  • (12)
  • (9.6)
  • (1.6)
  • (3.9)
  • (2.75)
  • (4)

SPECIFICATIONS SUBJECT TO CHANGE
