PFMT200S-10A, 10A

PFMT200S-10
2-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-300VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@120V): <30V in 30s
  • Performance: 60dB (14KHZ to 100KHZ)>100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

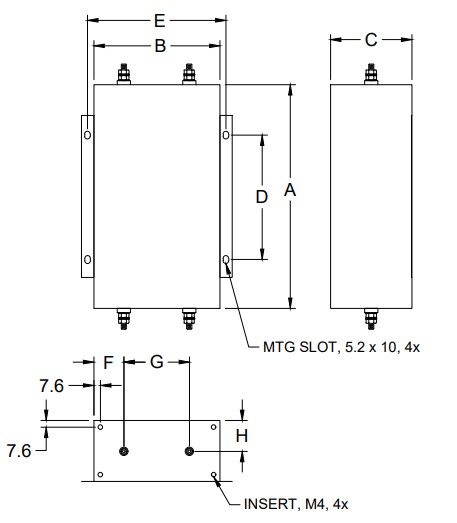

200S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT200S-10 10 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.5
 2.0 (0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT200S-30A, 30A

PFMT200S-30
2-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-300VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 70C
  • Hipot (L-G): 2200VDC (prior to adding discharge resistors)
  • Discharge volt. (@120V): <30V in 30s
  • Performance: 60dB (14KHZ to 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

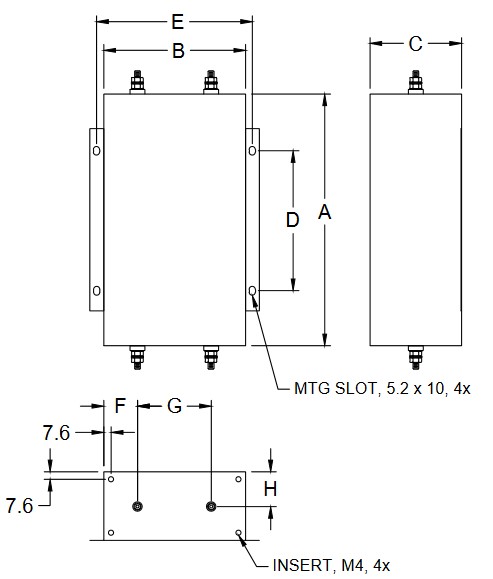

200s-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT200S-30 30 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.5
 2.0 (0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT200S-60A, 60A

PFMT200S-60
2-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-300VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@120V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Manufactured in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

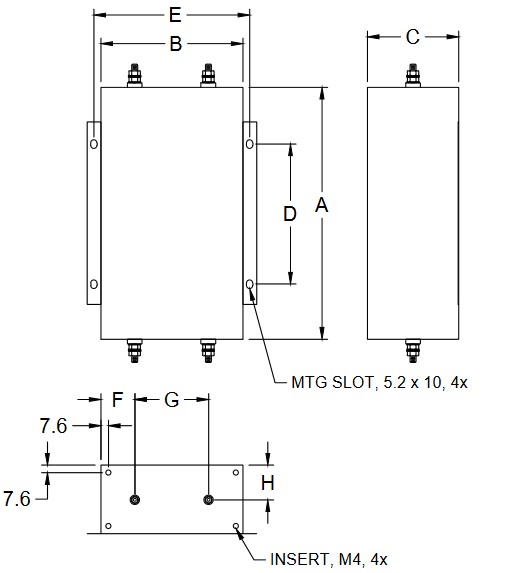

200s-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT200S-60 60 M5
  • 127
  • 102
  • 76
  • 63.5
  • 114
  • 34.5
  • 33
  • 38
 4.0 (1.8)
  • (5)
  • (4)
  • (3)
  • (2.5)
  • (4.5)
  • (1.36)
  • (1.3)
  • (1.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT230S-10A, 10A

PFMT230S-10
3-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

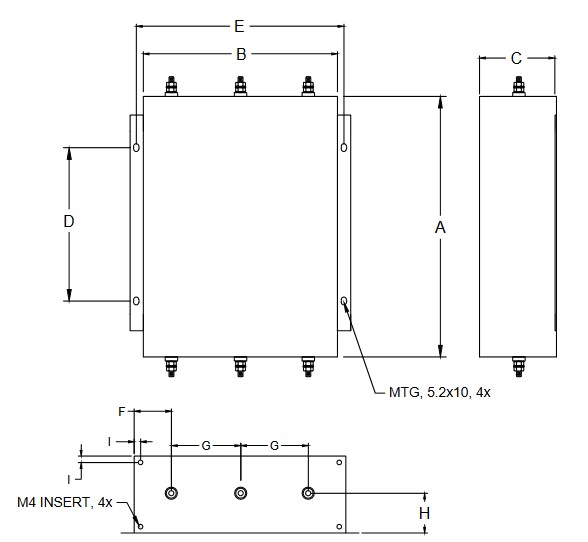

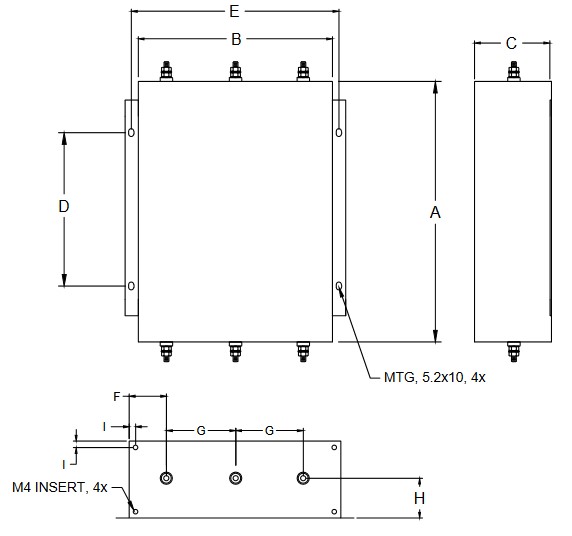

230s-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT230S-10 10 M5
  • 127
  • 102
  • 76
  • 76
  • 114
  • 25.4
  • 25.4
  • 38
  • 7.6
 7.5 (3.4)
  • (5)
  • (4)
  • (3)
  • (3)
  • (4.5)
  • (1)
  • (1)
  • (1.5)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT230S-30A, 30A

PFMT230S-30
3-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
230s-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT230S-30 30 M5
  • 127
  • 102
  • 76
  • 76
  • 114
  • 25.4
  • 25.4
  • 38
  • 76.5
 7.5 (3.4)
  • (5)
  • (4)
  • (3)
  • (3)
  • (4.5)
  • (1)
  • (1)
  • (1.5)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT230S-60A, 60A

PFMT230S-60
3-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

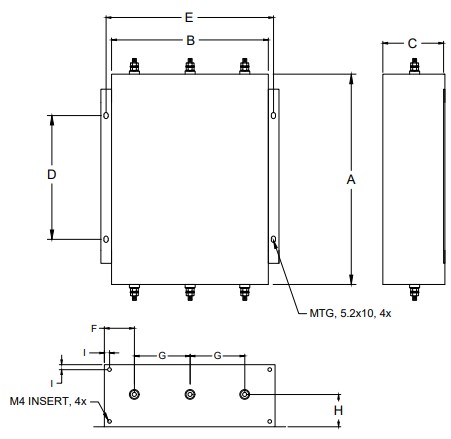

230s-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT230S-60 60 M5
  • 203
  • 102
  • 102
  • 152
  • 127
  • 25.4
  • 25.4
  • 51
  • 12.7
 16 (7.3)
  • (8)
  • (4)
  • (4)
  • (6)
  • (5)
  • (1)
  • (1)
  • (2)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT230S-100A, 100A

PFMT230S-100
3-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

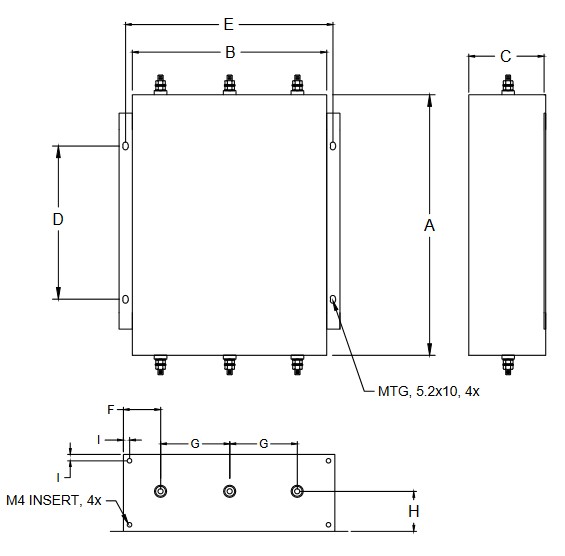

230s-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT230S-100 100 M6
  • 245
  • 152
  • 127
  • 203
  • 178
  • 38
  • 38
  • 63.5
  • 12.7
 23 (10.5)
  • (10)
  • (6)
  • (5)
  • (8)
  • (7)
  • (1.5)
  • (1.5)
  • (2.5)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT240S-10A, 10A

PFMT240S-10
4-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

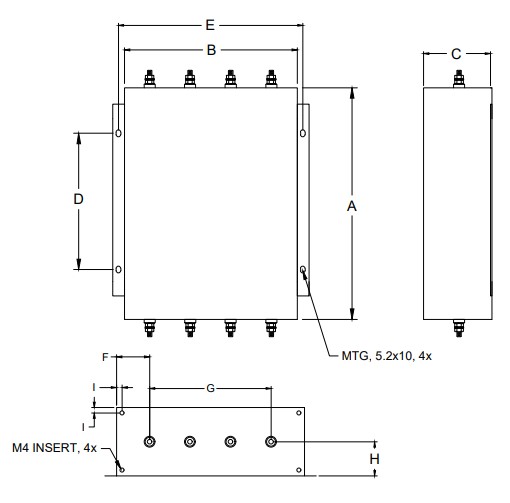

240s-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT240S-10 10 M5
  • 152
  • 127
  • 102
  • 102
  • 140
  • 25.4
  • 76
  • 51
  • 7.6
 13 (5.9)
  • (6)
  • (5)
  • (4)
  • (4)
  • (5)
  • (1)
  • (3)
  • (2)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT240S-30A, 30A

PFMT240S-30
4-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
240s-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT240S-30 30 M5
  • 152
  • 127
  • 102
  • 102
  • 140
  • 25.4
  • 76
  • 51
  • 7.6
 13 (5.9)
  • (6)
  • (5)
  • (4)
  • (4)
  • (5)
  • (1)
  • (3)
  • (2)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT240S-60A, 60A

PFMT240S-60
4-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

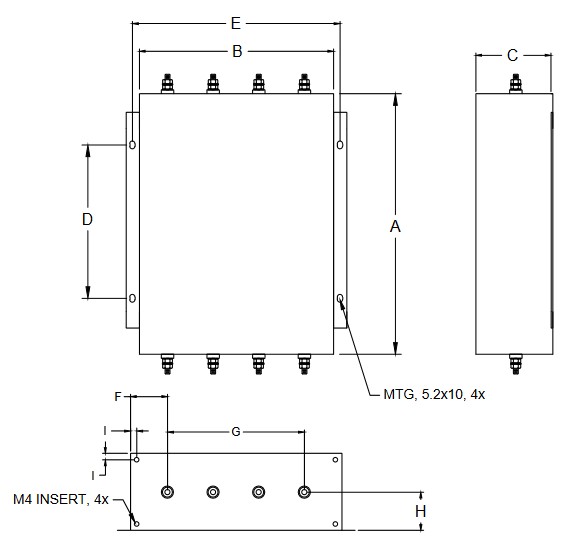

240s-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT240S-60 60 M5
  • 203
  • 152
  • 127
  • 152
  • 178
  • 30
  • 91
  • 63.5
  • 12.7
 22 (10)
  • (8)
  • (6)
  • (5)
  • (6)
  • (7)
  • (1.2)
  • (3.6)
  • (2.5)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT240S-100A, 100A

PFMT240S-100
4-LINE TEMPEST FILTER
60dB@14KHZ
100dB@100KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
240s-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT240S-100 100 M6
  • 305
  • 152
  • 152
  • 254
  • 178
  • 30
  • 91
  • 76
  • 12.7
 32 (14.5)
  • (12)
  • (6)
  • (6)
  • (10)
  • (7)
  • (1.2)
  • (3.6)
  • (3)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT202S-10, 10A

PFMT202S-10
2-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-300VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >60dB (14KHZ TO 100KHZ) >100dB (100KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

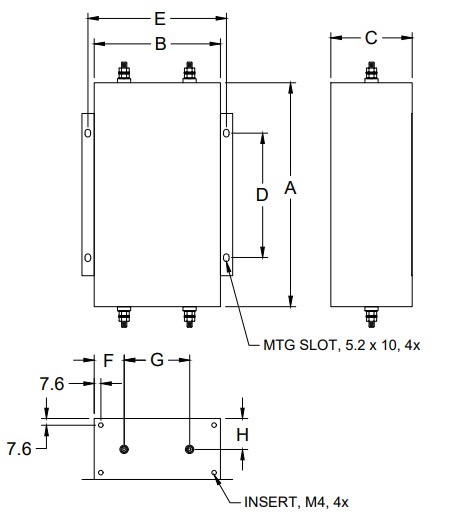

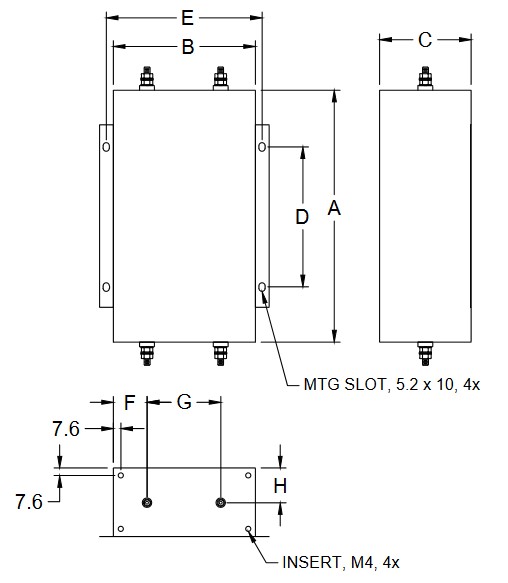

202s-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT202S-10 10 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.5
 2.0 (0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT202S-30, 30A

PFMT202S-30
2-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage:0-300VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@120V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
202s-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT202S-30 30 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.5
 2.0 (0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT202S-60, 60A

PFMT202S-60
2-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage:0-300VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@120V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

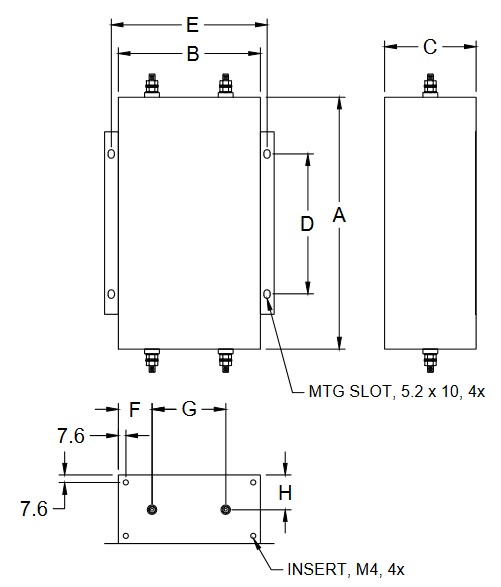

202s-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT202S-60 60 M5
  • 127
  • 102
  • 76
  • 63.5
  • 114
  • 34.5
  • 33
  • 38
 4.0 (1.8)
  • (5)
  • (4)
  • (3)
  • (2.5)
  • (4.5)
  • (1.35)
  • (1.3)
  • (1.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT232S-10, 10A

PFMT232S-10
3-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
232S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT232S-10 10 M5
  • 127
  • 102
  • 76
  • 76
  • 114
  • 25.4
  • 25.4
  • 38
  • 7.6
 7.5(3.4)
  • (5)
  • (4)
  • (3)
  • (3)
  • (4.5)
  • (1)
  • (1)
  • (1.5)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT232S-30, 30A

PFMT232S-30
3-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
232S-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT232S-30 30 M5
  • 127
  • 102
  • 76
  • 76
  • 114
  • 25.4
  • 25.4
  • 38
  • 7.6
 7.5(3.4)
  • (5)
  • (4)
  • (3)
  • (3)
  • (4.5)
  • (1)
  • (1)
  • (1.5)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT232S-60, 60A

PFMT232S-60
3-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

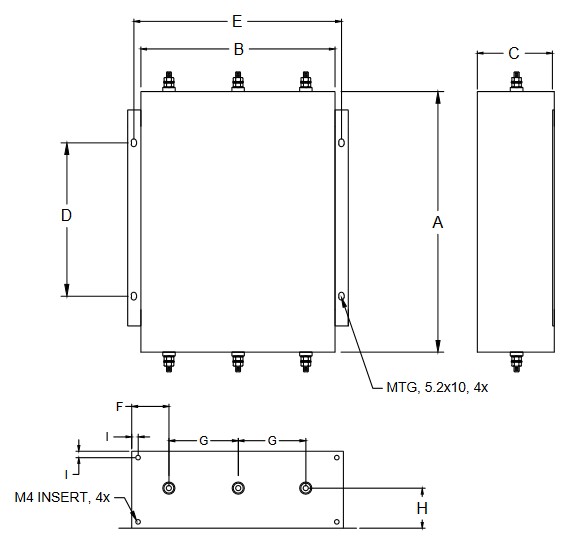

232S-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT232S-60 60 M5
  • 203
  • 102
  • 102
  • 152
  • 127
  • 25.4
  • 25.4
  • 51
  • 12.7
 16(7.3)
  • (8)
  • (4)
  • (4)
  • (6)
  • (5)
  • (1)
  • (1)
  • (2)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT232S-100, 100A

PFMT232S-100
3-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

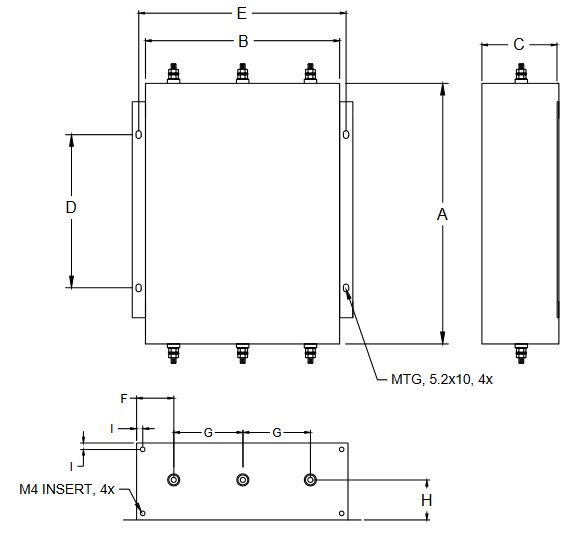

232S-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT232S-100 100 M6
  • 254
  • 152
  • 127
  • 203
  • 178
  • 38
  • 38
  • 63.5
  • 12.7
 23(10.5)
  • (10)
  • (6)
  • (5)
  • (8)
  • (7)
  • (1.5)
  • (1.5)
  • (2.5)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT242S-10, 10A

PFMT242S-10
4-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

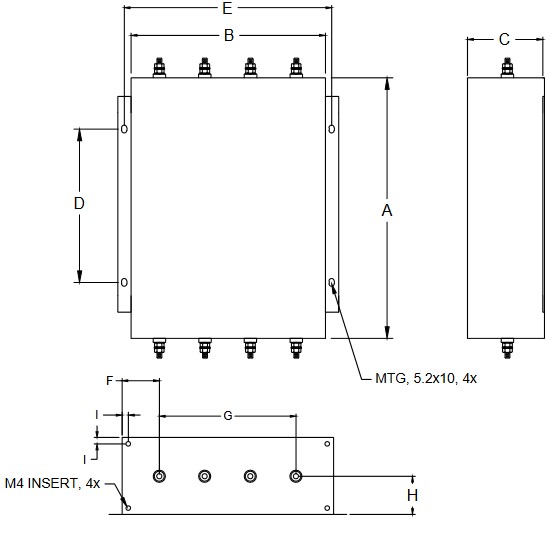

242S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT242S-10 10 M5
  • 152
  • 127
  • 102
  • 102
  • 140
  • 25.4
  • 76
  • 51
  • 7.6
 13(5.9)
  • (6)
  • (5)
  • (4)
  • (4)
  • (5.5)
  • (1)
  • (3)
  • (2)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT242S-30, 30A

PFMT242S-30
4-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

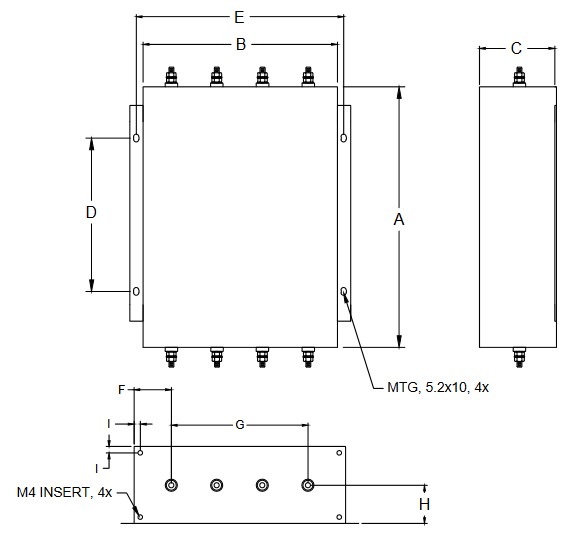

242S-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT242S-30 30 M5
  • 152
  • 127
  • 102
  • 102
  • 140
  • 25.4
  • 76
  • 51
  • 7.6
 13(5.9)
  • (6)
  • (5)
  • (4)
  • (4)
  • (5.5)
  • (1)
  • (3)
  • (2)
  • (0.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT242S-60, 60A

PFMT242S-60
4-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

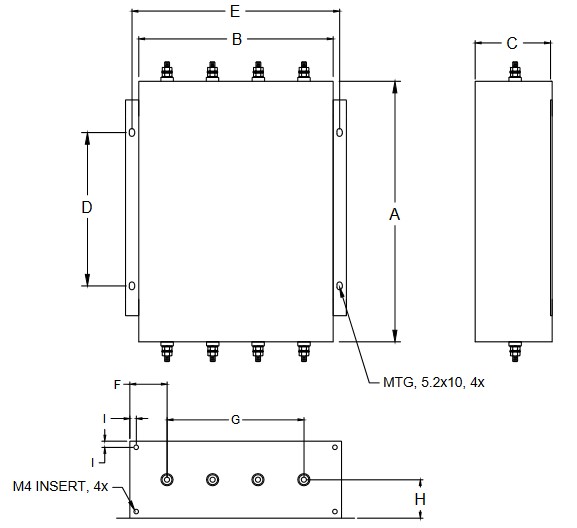

242S-60
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT242S-60 60 M5
  • 203
  • 152
  • 127
  • 152
  • 178
  • 30
  • 91
  • 63.5
  • 12.7
 22(10)
  • (8)
  • (6)
  • (5)
  • (6)
  • (7)
  • (1.2)
  • (3.6)
  • (2.5)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT510S-200, 200A

PFMT510S-200
2-LINE DC TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 200A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

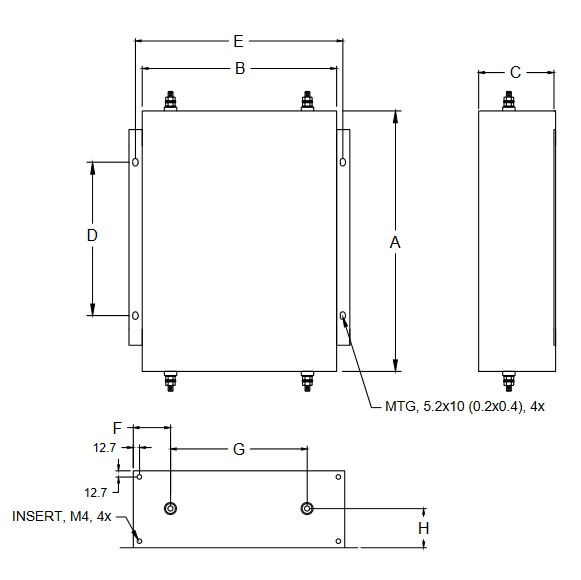

510S-200
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT510S-200 200 M10
  • 305
  • 165
  • 140
  • 205
  • 185
  • 40
  • 85
  • 70
 18(8.2)
  • (12)
  • (6.5)
  • (5.5)
  • (8.1)
  • (7.3)
  • (1.57)
  • (3.35)
  • (2.75)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT510S-150, 150A

PFMT510S-150
2-LINE DC TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 150A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

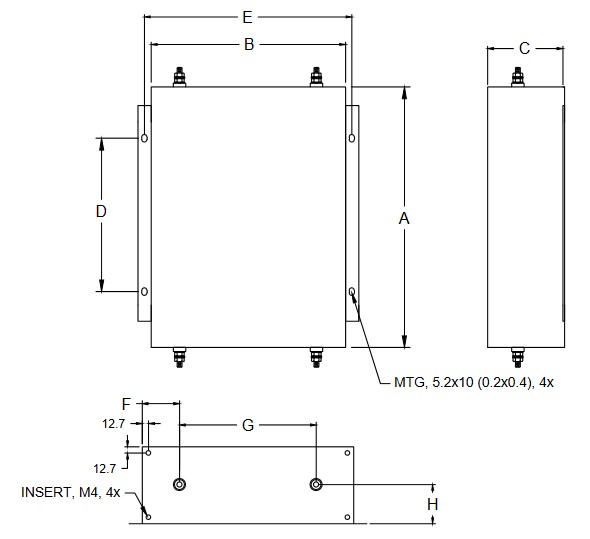

510S-150
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT510S-150 150 M10
  • 305
  • 165
  • 140
  • 205
  • 185
  • 40
  • 85
  • 70
 18(8.2)
  • (12)
  • (6.5)
  • (5.5)
  • (8.1)
  • (7.3)
  • (1.57)
  • (3.35)
  • (2.75)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT510S-100, 100A

PFMT510S-100
2-LINE DC TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 100A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

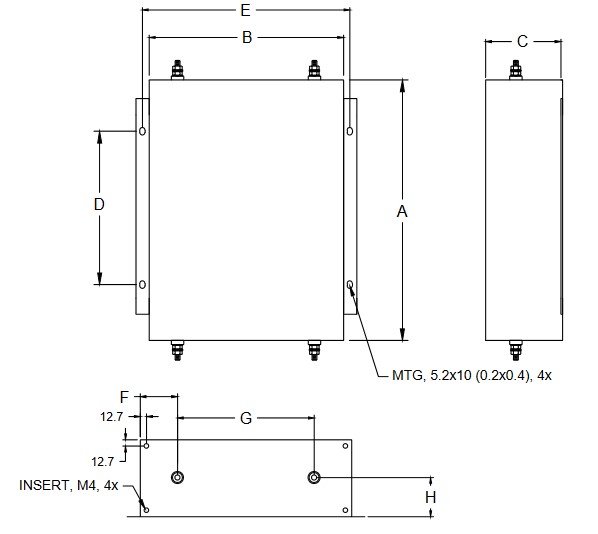

510S-100
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT510S-100 100 M6
  • 191
  • 102
  • 102
  • 102
  • 122
  • 31.75
  • 38
  • 51
 7.5(3.4)
  • (7.5)
  • (4)
  • (4)
  • (4)
  • (4.8)
  • (1.25)
  • (1.5)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT510S-60, 60A

PFMT510S-60
2-LINE DC TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 60A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

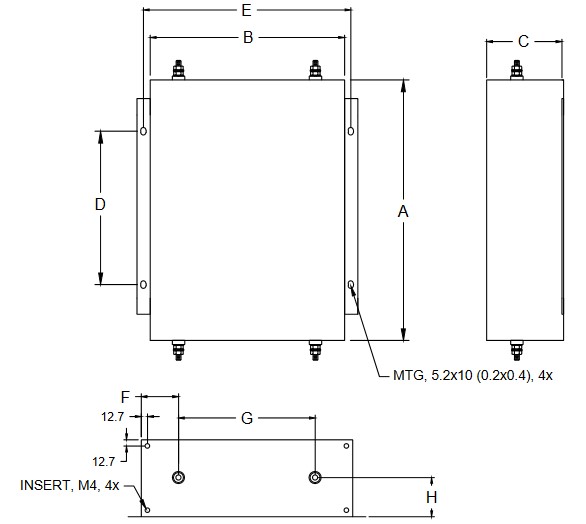

510S-60
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT510S-60 60 M5
  • 191
  • 102
  • 102
  • 102
  • 122
  • 31.75
  • 38
  • 51
 7.0(3.2)
  • (7.5)
  • (4)
  • (4)
  • (4)
  • (4.8)
  • (1.25)
  • (1.5)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT510S-40, 40A

PFMT510S-40
2-LINE DC TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 40A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

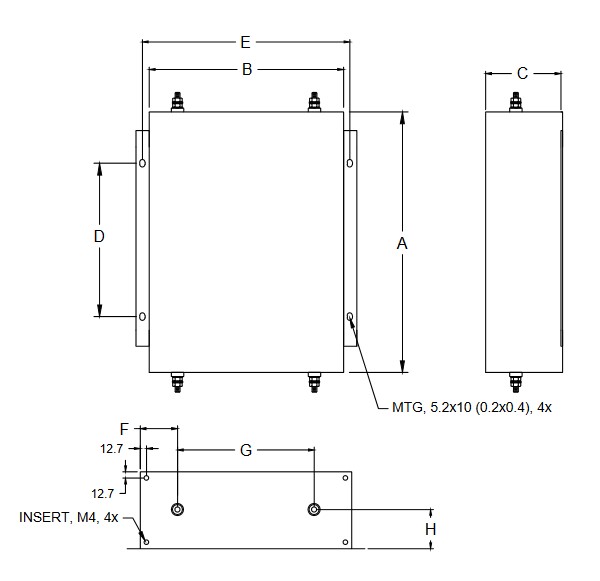

510S-40
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT510S-40 40 M5
  • 191
  • 102
  • 102
  • 102
  • 122
  • 31.75
  • 38
  • 51
 6.5(3.0)
  • (7.5)
  • (4)
  • (4)
  • (4)
  • (4.8)
  • (1.25)
  • (1.5)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT500S-30, 30A

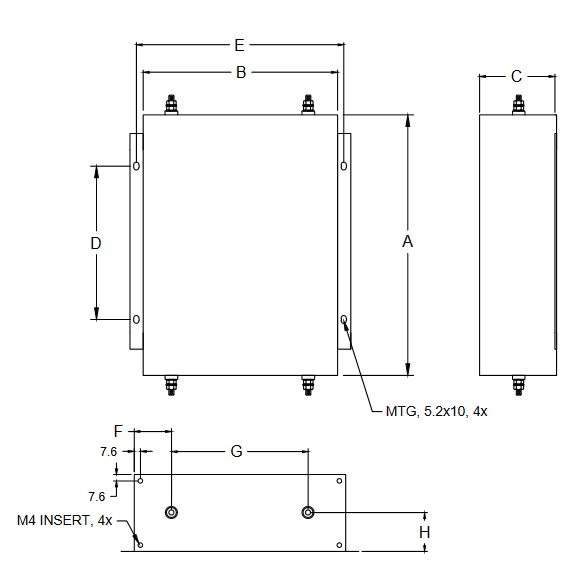

PFMT500S-30
DC TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 30A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
500S-30
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT500S-30 30 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.4
 2.0(0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT500S-20, 20A

PFMT500S-20
DC TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 20A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

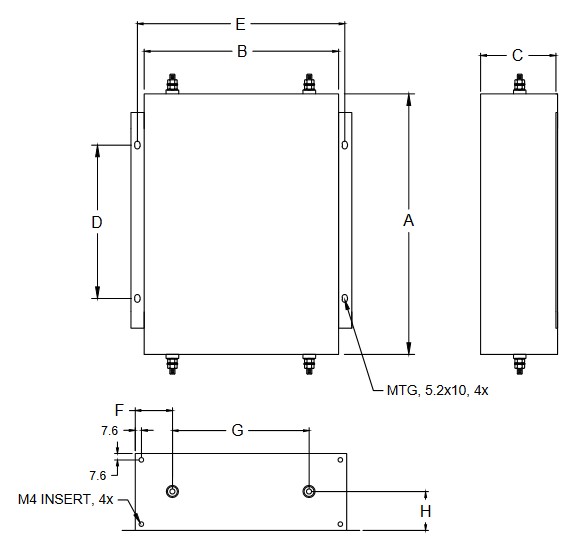

500S-20
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT500S-20 20 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.4
 2.0(0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT500S-10, 10A

PFMT500S-10
DC TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-400VDC
  • Max current: 10A/Line
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC (prior to adding discharge resistors)
  • Discharge volt. (@400V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

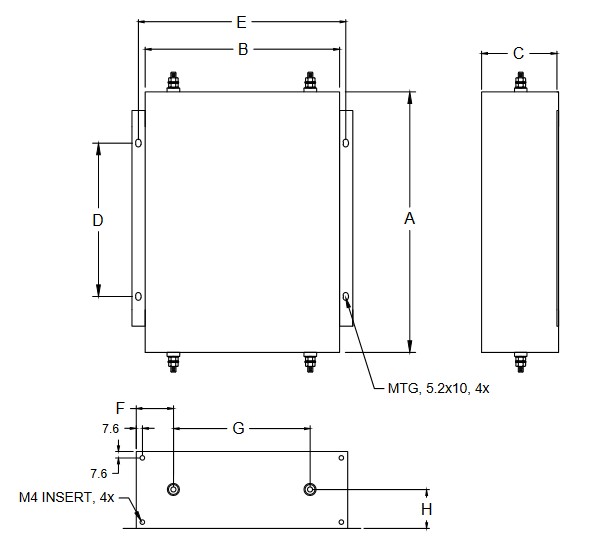

500S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMT500S-10 10 M5
  • 102
  • 76
  • 51
  • 51
  • 89
  • 25.4
  • 25.4
  • 25.4
 2.0(0.9)
  • (4)
  • (3)
  • (2)
  • (2)
  • (3.5)
  • (1)
  • (1)
  • (1)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT4400S-100, 100A

PFMT4400S-100
4-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

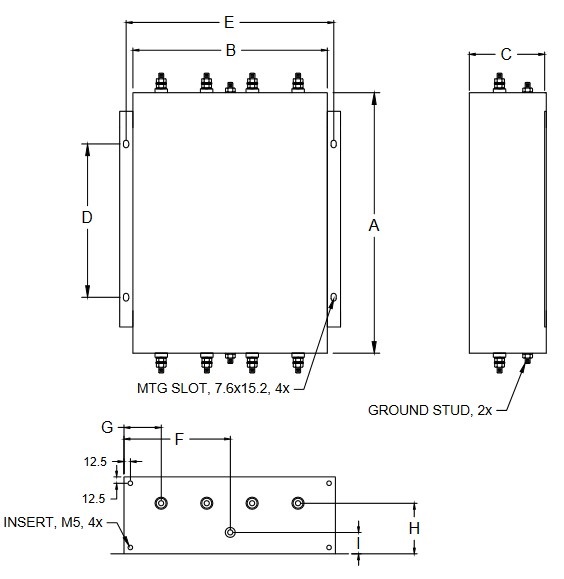

4400S-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT4400S-100 100 M6
  • 457
  • 203
  • 152
  • 356
  • 223
  • 102
  • 40
  • 95
  • 45
 38(17.3)
  • (18)
  • (8)
  • (6)
  • (14)
  • (8.8)
  • (4)
  • (1.57)
  • (3.74)
  • (1.77)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT4400S-60, 60A

PFMT4400S-60
4-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

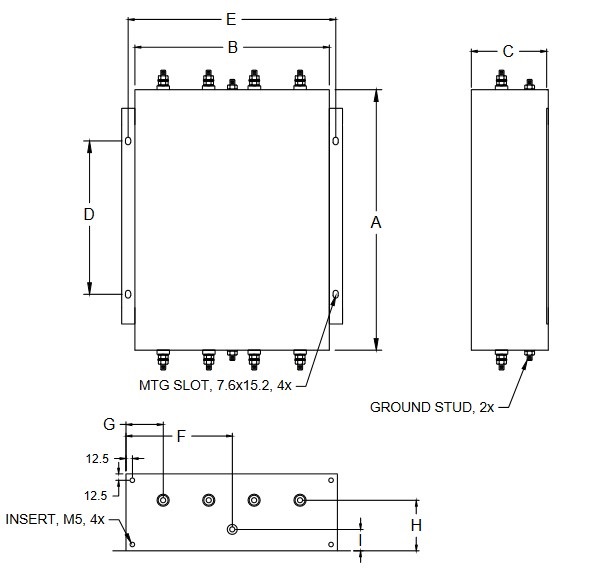

4400S-60
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT4400S-60 60 M5
  • 356
  • 178
  • 127
  • 254
  • 198
  • 89
  • 35
  • 84
  • 40
 25(11.4)
  • (14)
  • (7)
  • (5)
  • (10)
  • (7.8)
  • (3.5)
  • (1.38)
  • (3.3)
  • (1.57)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT4400S-30, 30A

PFMT4400S-30
4-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

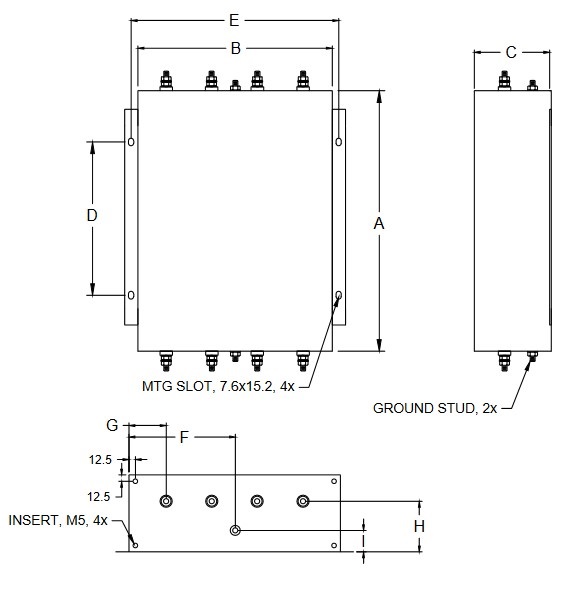

4400S-30
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT4400S-30 30 M5
  • 305
  • 152.4
  • 114
  • 203.2
  • 147
  • 76.2
  • 35
  • 74
  • 35
 13(5.9)
  • (12)
  • (6)
  • (4.5)
  • (8)
  • (5.8)
  • (3.0)
  • (1.38)
  • (2.9)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT4400S-10, 10A

PFMT4400S-10
4-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

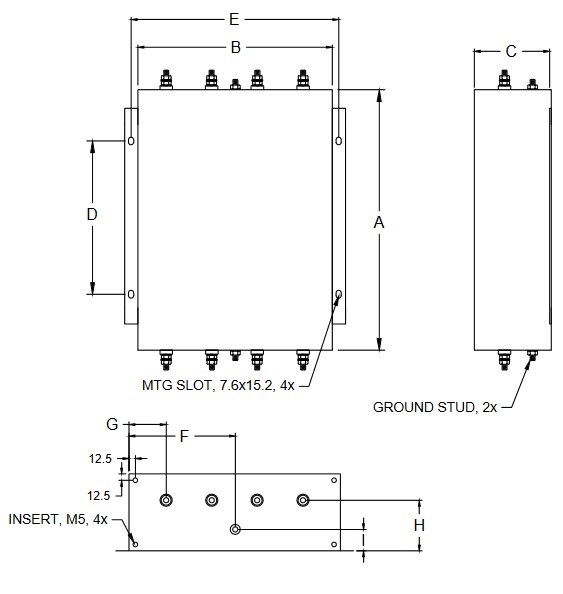

4400S-10
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT4400S-10 10 M5
  • 305
  • 152.4
  • 114
  • 203.2
  • 147
  • 76.2
  • 35
  • 74
  • 35
 13(5.9)
  • (12)
  • (6)
  • (4.5)
  • (8)
  • (5.8)
  • (3.0)
  • (1.38)
  • (2.9)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT3400S-100, 100A

PFMT3400S-100
3-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

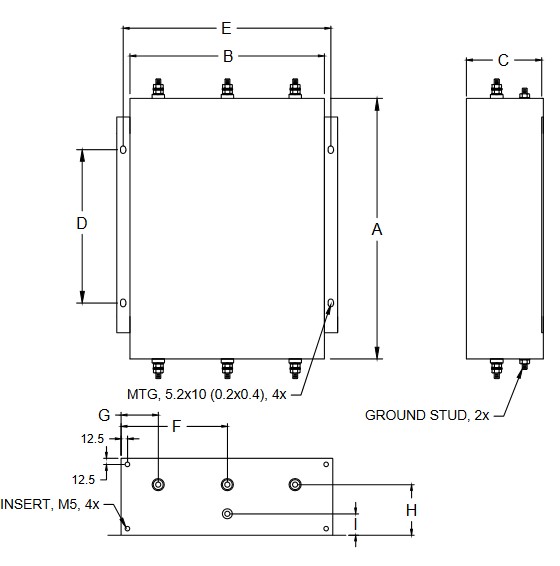

3400S-100
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT3400S-100 100 M6
  • 457
  • 178
  • 152
  • 356
  • 198
  • 89
  • 40
  • 95
  • 45
 32(14.5)
  • (18)
  • (7)
  • (6)
  • (14)
  • (7.8)
  • (3.5)
  • (1.57)
  • (3.74)
  • (1.77)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT3400S-60, 60A

PFMT3400S-60
3-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

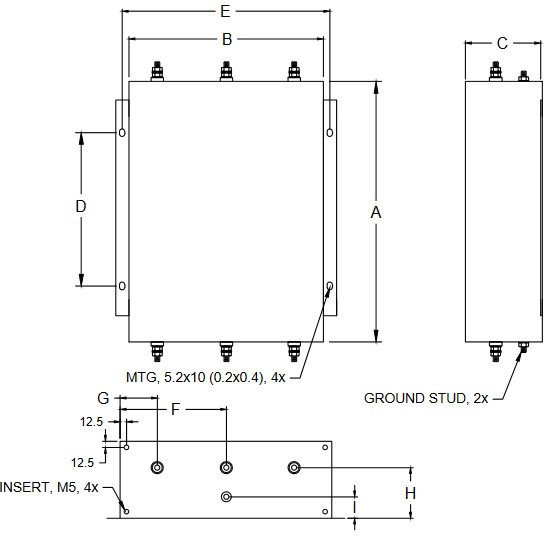

3400S-60
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT3400S-60 60 M5
  • 356
  • 152
  • 127
  • 254
  • 173
  • 76.2
  • 40
  • 80
  • 40
 18(8.2)
  • (14)
  • (6)
  • (5)
  • (10)
  • (6.8)
  • (3)
  • (1.57)
  • (3.25)
  • (1.57)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT3400S-30, 30A

PFMT3400S-30
3-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

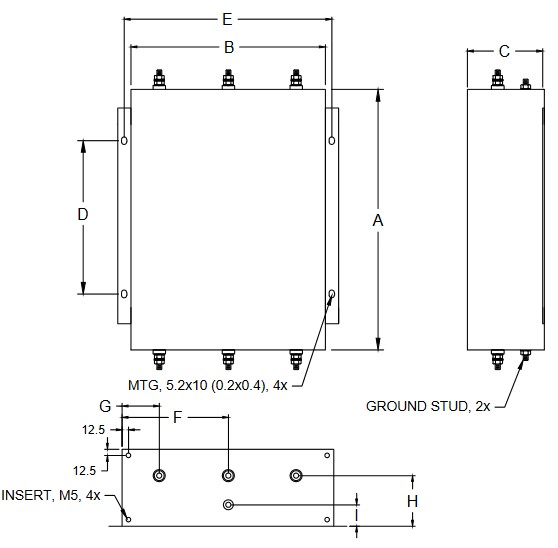

3400S-30
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT3400S-30 30 M5
  • 305
  • 127
  • 114
  • 203.2
  • 147
  • 63.5
  • 35
  • 76.2
  • 35
 10(4.5)
  • (12)
  • (5)
  • (4.5)
  • (8)
  • (5.8)
  • (2.5)
  • (1.38)
  • (3.0)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT3400S-10, 10A

PFMT3400S-10
3-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60/400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

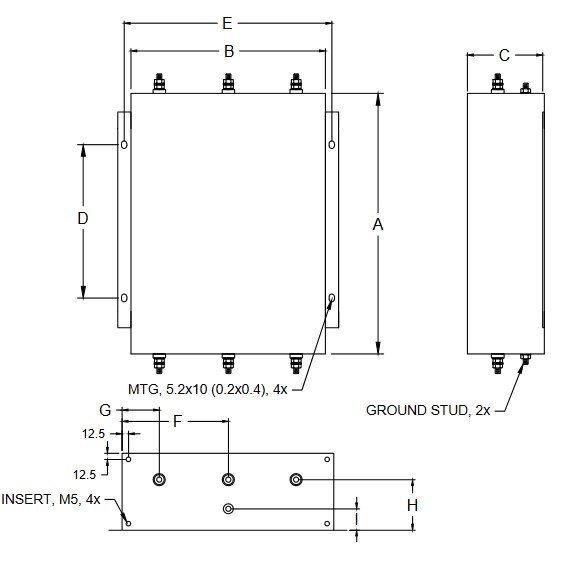

3400S-10
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT3400S-10 10 M5
  • 305
  • 127
  • 114
  • 203.2
  • 147
  • 63.5
  • 35
  • 76.2
  • 35
 10(4.5)
  • (12)
  • (5)
  • (4.5)
  • (8)
  • (5.8)
  • (2.5)
  • (1.38)
  • (3.0)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT2400S-60, 60A

PFMT2400S-60
2-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 60A/Line
  • Frequency: DC-400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

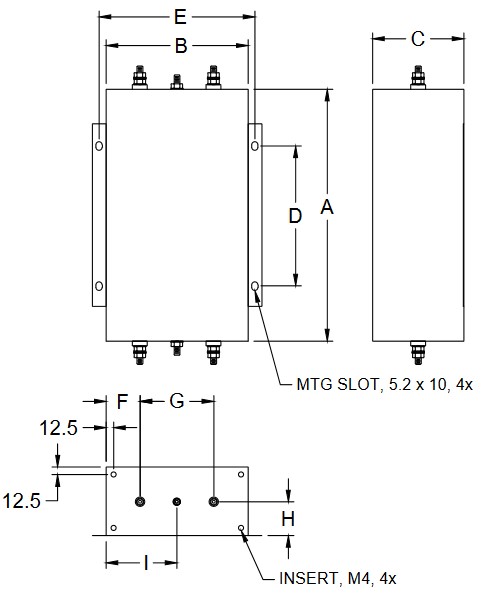

2400S-60
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT2400S-60 60 M5
  • 305
  • 127
  • 127
  • 203
  • 147
  • 35
  • 57
  • 63.5
  • 63.5
 6.0(2.7)
  • (12)
  • (5)
  • (5)
  • (8)
  • (5.8)
  • (1.38)
  • (2.24)
  • (2.5)
  • (2.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT2400S-30, 30A

PFMT2400S-30
2-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 30A/Line
  • Frequency: DC-400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

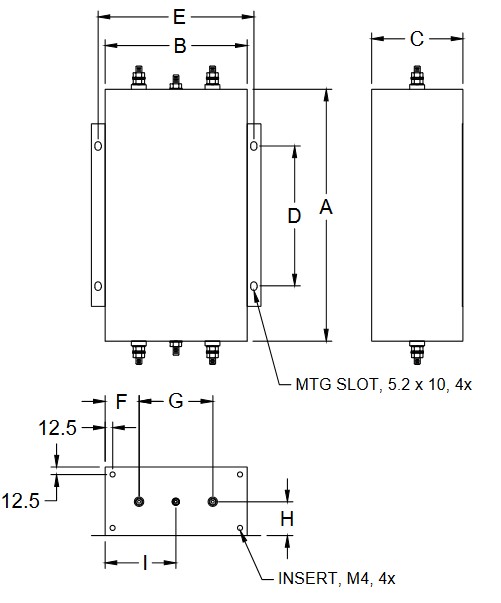

2400S-30
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT2400S-30 30 M5
  • 254
  • 101.6
  • 101.6
  • 152.4
  • 122
  • 30
  • 41.6
  • 50.8
  • 50.8
 6.0(2.7)
  • (10)
  • (4)
  • (4)
  • (6)
  • (4.8)
  • (1.18)
  • (1.64)
  • (2)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT2400S-10, 10A

PFMT2400S-10
2-LINE + GND, 400HZ TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: DC-400HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

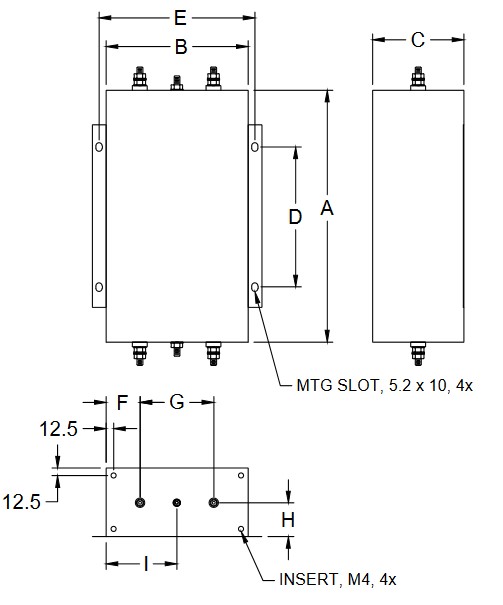

2400S-10
MODEL AMPS TERMINALS DIMENSIONS, MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT2400S-10 10 M5
  • 254
  • 101.6
  • 101.6
  • 152.4
  • 122
  • 30
  • 41.6
  • 50.8
  • 50.8
 6.0(2.7)
  • (10)
  • (4)
  • (4)
  • (6)
  • (4.8)
  • (1.18)
  • (1.64)
  • (2)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-400, 400A

PFMT455S-400
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 400A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

455S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-400 400 M16
  • 1372
  • 508
  • 305
  • 610
  • 558
 542(246.4)
  • (54)
  • (20)
  • (12)
  • (24)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-300, 300A

PFMT455S-300
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 300A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

455S-300
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-300 300 M16
  • 1372
  • 508
  • 305
  • 610
  • 558
 542(246.4)
  • (54)
  • (20)
  • (12)
  • (24)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-200, 200A

PFMT455S-200
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 200A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
455S-200
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-200 200 M12
  • 914
  • 508
  • 178
  • 381
  • 558
 234(106.4)
  • (36)
  • (20)
  • (7)
  • (15)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-150, 150A

PFMT455S-150
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 150A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
455S-150
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-150 150 M12
  • 914
  • 508
  • 178
  • 381
  • 558
 234(106.4)
  • (36)
  • (20)
  • (7)
  • (15)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-100, 100A

PFMT455S-100
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
455s-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-100 100 M10
  • 635
  • 457
  • 152
  • 254
  • 508
 122(55.5)
  • (25)
  • (18)
  • (6)
  • (10)
  • (20)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT455S-10, 10A

PFMT455S-10
4-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
455S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT455S-10 10 M6
  • 457
  • 305
  • 127
  • 497
  • 254
 48(21.8)
  • (18)
  • (12)
  • (5)
  • (19.6)
  • (10)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-400, 400A

PFMT355S-400
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 400A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

355S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-400 400 M16
  • 1320
  • 406
  • 305
  • 584
  • 556
 385(175)
  • (52)
  • (16)
  • (12)
  • (23)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-300, 300A

PFMT355S-300
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 300A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

NOTE: LIFT BRACKETS PROVIDED ON CABINET

355S-300
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-300 300 M16
  • 1320
  • 406
  • 305
  • 584
  • 556
 385(175)
  • (52)
  • (16)
  • (12)
  • (23)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-200, 200A

PFMT355S-200
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 200A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
355S-200
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-200 200 M12
  • 914
  • 406
  • 178
  • 381
  • 456
 195(88.6)
  • (36)
  • (16)
  • (7)
  • (15)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-150, 150A

PFMT355S-150
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 150A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
355S-150
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-150 150 M12
  • 914
  • 406
  • 178
  • 381
  • 456
 195(88.6)
  • (36)
  • (16)
  • (7)
  • (15)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-100, 100A

PFMT355S-100
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
355S-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-100 100 M10
  • 635
  • 356
  • 152
  • 254
  • 406
 92(41.8)
  • (25)
  • (14)
  • (6)
  • (10)
  • (16)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT355S-10, 10A

PFMT355S-10
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
355S-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-10 10 M6
  • 457
  • 229
  • 127
  • 497
  • 178
 36(16.4)
  • (18)
  • (9)
  • (5)
  • (19.6)
  • (7)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-100, 100A

PFMT255S-100
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
255S-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-100 100 M10
  • 584
  • 254
  • 127
  • 624
  • 203
48(21.8)
  • (23)
  • (10)
  • (5)
  • (24.6)
  • (8)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-32, 32A

PFMT255S-32
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
255S-32
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-32 32 M6
  • 432
  • 178
  • 102
  • 472
  • 127
 16(7.3)
  • (17)
  • (7)
  • (4)
  • (18.6)
  • (5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-16, 16A

PFMT255S-16
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
255s-16
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-16 16 M6
  • 432
  • 178
  • 102
  • 472
  • 127
 16(7.3)
  • (17)
  • (7)
  • (4)
  • (18.6)
  • (5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT255S-10, 10A

PFMT255S-10
2-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
10spec
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT255S-10 10 M6
  • 432
  • 178
  • 102
  • 472
  • 127
 16(7.3)
  • (17)
  • (7)
  • (4)
  • (18.6)
  • (5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-63, 63A

PFMT333S-63
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
333s-63
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • G
  • H
  • I
  • J
  • K
PFMT333S-63 63 M5
  • 203
  • 127
  • 102
  • 163
  • 147
  • 51.5
  • 32
  • 31.5
  • 60
  • 34
 10(4.5)
  • (8)
  • (5)
  • (4)
  • (6.4)
  • (5.8)
  • (2)
  • (1.3)
  • (1.2)
  • (2.4)
  • (1.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-32, 32A

PFMT333S-32
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
333s-32
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • G
  • H
  • I
  • J
  • K
PFMT333S-32 32 M5
  • 152
  • 120
  • 90
  • 102
  • 140
  • 48
  • 30
  • 30
  • 53
  • 32
 6.0(2.7)
  • (6)
  • (4.7)
  • (3.5)
  • (4)
  • (5.5)
  • (1.9)
  • (1.2)
  • (1.2)
  • (2)
  • (1.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-16, 16A

PFMT333S-16
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
333s-16
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • G
  • H
  • I
  • J
  • K
PFMT333S-16 16 M5
  • 152
  • 120
  • 90
  • 102
  • 140
  • 48
  • 30
  • 30
  • 53
  • 32
 6.0(2.7)
  • (6)
  • (4.7)
  • (3.5)
  • (4)
  • (5.5)
  • (1.9)
  • (1.2)
  • (1.2)
  • (2)
  • (1.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT333S-10, 10A

PFMT333S-10
3-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to adding discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
333s-10
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • G
  • H
  • I
  • J
  • K
PFMT333S-10 10 M5
  • 152
  • 120
  • 90
  • 102
  • 140
  • 48
  • 30
  • 30
  • 53
  • 52
 6.0(2.7)
  • (6)
  • (4.7)
  • (3.5)
  • (4)
  • (5.5)
  • (1.9)
  • (1.2)
  • (1.2)
  • (2)
  • (1.3)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-63, 63A

PFMT222S-63
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222S-63
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-63 63 M5
  • 140
  • 115
  • 76
  • 90
  • 135
  • 35
  • 45
  • 38
  • 57.5
 6.0(2.7)
  • (5.5)
  • (4.5)
  • (3)
  • (3.5)
  • (5.3)
  • (1.38)
  • (1.77)
  • (1.5)
  • (2.26)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-32, 32A

PFMT222S-32
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC(prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-32
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-32 32 M5
  • 127
  • 102
  • 70
  • 76
  • 120
  • 30
  • 42
  • 35
  • 51
 4.0(1.8)
  • (5)
  • (4)
  • (2.75)
  • (3)
  • (4.7)
  • (1.2)
  • (1.65)
  • (1.38)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-16, 16A

PFMT222S-16
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-16
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-16 16 M5
  • 127
  • 102
  • 70
  • 76
  • 120
  • 30
  • 42
  • 35
  • 51
 4.0(1.8)
  • (5)
  • (4)
  • (2.75)
  • (3)
  • (4.7)
  • (1.2)
  • (1.65)
  • (1.38)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT222S-10, 10A

PFMT222S-10
2-LINE + GND TEMPEST FILTER
100dB@10KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 10A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • HIPOT (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
222s-10
MODEL AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT222S-10 10 M5
  • 127
  • 102
  • 70
  • 76
  • 120
  • 30
  • 42
  • 35
  • 51
 4.0(1.8)
  • (5)
  • (4)
  • (2.75)
  • (3)
  • (4.7)
  • (1.2)
  • (1.65)
  • (1.38)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMT242S-100, 100A

PFMT242S-100
4-LINE TEMPEST FILTER
100dB@14KHZ

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 1500VDC(prior to adding discharge resistors)
  • Discharge volt.(@277V): <30V IN 30S
  • Performance: >100dB (14KHZ TO 20GHZ)
  • Designed in accordance with the following standards:

UL1283
MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET

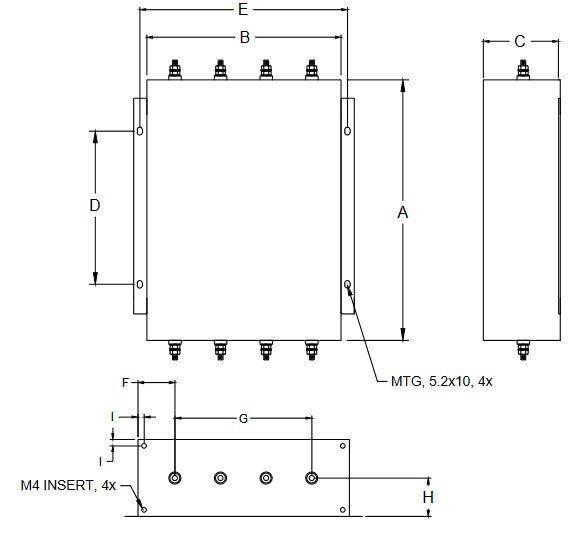

242S-100
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
  • I
PFMT242S-100 100 M6
  • 305
  • 152
  • 152
  • 254
  • 178
  • 30
  • 91
  • 76
  • 12.7
 32(14.5)
  • (12)
  • (6)
  • (6)
  • (10)
  • (7)
  • (1.2)
  • (3.6)
  • (3)
  • (0.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-32-1, 32A

PFMF920MR-32-1
1-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-16-1
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-32-1 32 M5
  • 305
  • 50
  • 64
  • 25
  • 32
  • 35
 4.4 (2) 1.0" NPS 10
  • (12)
  • (1.97)
  • (2.5)
  • (1)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-50-1, 50A

PFMF920MR-50-1
1-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 50A
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-16-1
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-50-1 50 M5
  • 305
  • 76
  • 64
  • 38
  • 32
  • 35
 4.4 (2) 1.0" NPS 8
  • (12)
  • (3)
  • (2.5)
  • (1.5)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-63-1, 63A

PFMF920MR-63-1
1-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-16-1
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-63-1 63 M5
  • 305
  • 76
  • 64
  • 38
  • 32
  • 35
 4.4 (2) 1.0" NPS 6
  • (12)
  • (3)
  • (2.5)
  • (1.5)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-16-2, 16A

PFMF920MR-16-2
2-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-16-2
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-16-2 16 M5
  • 305
  • 89
  • 64
  • 44.5
  • 32
  • 35
 8.8 (4) 1.0" NPS 12
  • (12)
  • (3.5)
  • (2.5)
  • (1.75)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-32-2, 32A

PFMF920MR-32-2
2-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-32-2
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-32-2 32 M5
  • 305
  • 89
  • 64
  • 44.5
  • 32
  • 35
 8.8 (4) 1.0" NPS 8
  • (12)
  • (3.5)
  • (2.5)
  • (1.75)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-50-2, 50A

PFMF920MR-50-2
2-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 50A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-50-2
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-50-2 50 M5
  • 305
  • 102
  • 76
  • 51
  • 38
  • 35
 8.8 (4) 1.0" NPS 8
  • (12)
  • (4)
  • (3)
  • (2)
  • (1.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-63-2, 63A

PFMF920MR-63-2
2-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-63-2
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-63-2 63 M5
  • 305
  • 102
  • 76
  • 51
  • 38
  • 35
 8.8 (4) 1.0" NPS 6
  • (12)
  • (4)
  • (3)
  • (2)
  • (1.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-16-3, 16A

PFMF920MR-16-3
3-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-16-3
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-16-3 16 M5
  • 305
  • 127
  • 64
  • 63.5
  • 32
  • 35
 11 (5) 1.0" NPS 12
  • (12)
  • (5)
  • (2.5)
  • (2.5)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-32-3, 32A

PFMF920MR-32-3
3-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-32-3
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-32-3 32 M5
  • 305
  • 127
  • 64
  • 63.5
  • 32
  • 35
 11 (5) 1.0" NPS 10
  • (12)
  • (5)
  • (2.5)
  • (2.5)
  • (1.26)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-50-3, 50A

PFMF920MR-50-3
3-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 50A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-32-3
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-50-3 50 M5
  • 305
  • 146
  • 76
  • 73
  • 38
  • 35
 11 (5) 1.0" NPS 8
  • (12)
  • (5.8)
  • (3)
  • (2.9)
  • (1.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF920MR-63-3, 63A

PFMF920MR-63-3
3-LINE + GND
MRI FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <1% max at full rated unity load
  • Performance: 100dB (5MHZ to 20GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
LV Directive

DOWNLOAD SHEET
PFMS920-32-3
FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY (OUTPUT PIPE INCLUDES ALL HARDWARE AND GASKET)
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG) O/P PIPE O/P WIRE(GA)
  • A
  • B
  • C
  • D
  • E
  • E
PFMF920MR-63-3 63 M5
  • 305
  • 146
  • 76
  • 73
  • 38
  • 35
 11 (5) 1.0" NPS 6
  • (12)
  • (5.8)
  • (3)
  • (2.9)
  • (1.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-32-2, 32A

PFMF370-32-2
2-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-32-2
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-32 -2 32 M6
  • 813
  • 305
  • 132
  • 851
  • 254
 70 (31.8)
  • (32)
  • (12)
  • (5.2)
  • (33.5)
  • (10)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-63-2, 63A

PFMF370-63-2
2-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
307-63-2
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-63-2 63 M10
  • 1067
  • 355
  • 185
  • 1105
  • 305
 120 (54.5)
  • (42)
  • (14)
  • (7.3)
  • (43.5)
  • (12)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-16-3, 16A

PFMF370-16-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-16-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-16-3 16 M6
  • 813
  • 420
  • 132
  • 356
  • 458
 95 (43.2)
  • (32)
  • (16.5)
  • (5.2)
  • (14)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-32-3, 32A

PFMF370-32-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-32-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-32-3 32 M6
  • 813
  • 420
  • 132
  • 356
  • 458
 95 (43.2)
  • (32)
  • (16.5)
  • (5.2)
  • (14)
  • (18)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-63-3, 63A

PFMF370-63-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-63-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-63-3 63 M10
  • 1067
  • 508
  • 185
  • 483
  • 546
 205 (93.2)
  • (42)
  • (20)
  • (7.3)
  • (19)
  • (21.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-100-3, 100A

PFMF370-100-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-100-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-100-3 100 M10
  • 1067
  • 508
  • 185
  • 483
  • 546
 205 (93.2)
  • (42)
  • (20)
  • (7.3)
  • (19)
  • (21.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-200-3, 200A

PFMF370-200-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 200A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. Drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-200-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) MOUNTING LEGS
  • A
  • B
  • C
  • D
  • E
 (OPTIONAL)
PFMF370-200-3 200 M12
  • 1219
  • 685
  • 254
  • 559
  • 735
 460 (209) 370250ML
  • (48)
  • (27)
  • (10)
  • (22)
  • (29)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-250-3, 250A

PFMF370-250-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 250A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-250-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) MOUNTING LEGS
  • A
  • B
  • C
  • D
  • E
 (OPTIONAL)
PFMF370-250-3 250 M12
  • 1219
  • 685
  • 254
  • 559
  • 735
 460 (209) 370250ML
  • (48)
  • (27)
  • (10)
  • (22)
  • (29)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-400-3, 400A

PFMF370-400-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 400A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
PFMF370-400-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-400-3 400 2xM16
  • 1422
  • 750
  • 380
  • 660
  • 800
 550 (250)
  • (56)
  • (29.5)
  • (15)
  • (26)
  • (31.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-16-4, 16A

PFMF370-16-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 16A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-16-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-16-4 16 M6
  • 813
  • 550
  • 132
  • 356
  • 588
 175 (79.5)
  • (32)
  • (21.7)
  • (5.2)
  • (14)
  • (21)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-32-4, 32A

PFMF370-32-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 32A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. Drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-32-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-32-4 32 M6
  • 813
  • 550
  • 132
  • 356
  • 588
 175 (79.5)
  • (32)
  • (21.7)
  • (5.2)
  • (14)
  • (21)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-63-4, 63A

PFMF370-63-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-63-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG) MTG LEGS
  • A
  • B
  • C
  • D
  • E
PFMF370-63-4 63 M10
  • 1067
  • 660
  • 185
  • 483
  • 698
 280 (127.3) 370100ML
  • (42)
  • (26)
  • (7.3)
  • (19)
  • (27.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-100-4, 100A

PFMF370-100-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-100-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG) MTG LEGS
  • A
  • B
  • C
  • D
  • E
PFMF370-100-4 100 M10
  • 1067
  • 660
  • 185
  • 483
  • 698
 280 (127.3) 370100ML
  • (42)
  • (26)
  • (7.3)
  • (19)
  • (27.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-200-4, 200A

PFMF370-200-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 200A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-200-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG) MTG LEGS
  • A
  • B
  • C
  • D
  • E
 (OPTIONAL)
PFMF370-200-4 200 M12
  • 1219
  • 902
  • 254
  • 559
  • 952
 497 (226) 370250ML
  • (48)
  • (35.5)
  • (10)
  • (22)
  • (37.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-250-4, 250A

PFMF370-250-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 250A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-250-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG) MTG LEGS
  • A
  • B
  • C
  • D
  • E
 (OPTIONAL)
PFMF370-250-4 250 M12
  • 1219
  • 902
  • 254
  • 559
  • 952
 497 (226) 370250ML
  • (48)
  • (35.5)
  • (10)
  • (22)
  • (37.5)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-400-4, 400A

PFMF370-400-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 400A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-400-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-400-4 400 2xM16
  • 1422
  • 984
  • 380
  • 660
  • 1034
 712 (324)
  • (56)
  • (39)
  • (15)
  • (26)
  • (41)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-800-4, 800A

PFMF370-800-4
4-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 800A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
PFMF-370-800-4
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-800-4 800 3xM16
  • 2032
  • 1346
  • 380
  • 965
  • 1396
 1250 (568)
  • (80)
  • (53)
  • (15)
  • (38)
  • (55)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-800-3, 800A

PFMF370-800-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 800A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. Drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
PFMF-370-800-3
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-800-3 800 3xM16
  • 2032
  • 1015
  • 380
  • 965
  • 1065
 950 (432)
  • (80)
  • (40)
  • (15)
  • (38)
  • (42)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF370-100-2, 100A

PFMF370-100-2
2-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-100-2
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMF370-100-2 100 M10
  • 1067
  • 355
  • 185
  • 1105
  • 305
 120 (54.5)
  • (42)
  • (14)
  • (7.3)
  • (43.5)
  • (12)

SPECIFICATIONS SUBJECT TO CHANGE

Posted on

PFMF800LT-4, 4-LINE, 4A

PFMF800LT-4
4-LINE SCIF/FACILITY FILTER
ANALOG ALARM/CONTROL/LIGHTING

SPECIFICATIONS

  • Max voltage: 0-250VAC/0-250VDC
  • Operating frequency : DC-60HZ
  • Rated current: 4A/Line
  • Ambient temp. : -40 To 65C
  • Hipot(L-G): 1000VDC (prior to installing discharge resistors)
  • Discharge volt. (@250V): <30V IN 30S
  • Performance : 100dB (14KHZ To 20GHZ)
  • Typ. weight, LB(KG) : 8.0(3.6)
  • Line terminals : M5 studs
  • Load terminals : 18 GA wires

ADDITIONAL DETAILS:


1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory

DOWNLOAD SHEET
PFMF800LT-4
Posted on

PFMF800LT-8, 8-LINE, 4A

PFMF800LT-8
8-LINE SCIF/FACILITY FILTER
ANALOG ALARM/CONTROL/LIGHTING

SPECIFICATIONS

  • Max voltage : 0-250VAC/0-250VDC
  • Operating frequency : DC-60HZ
  • Rated current : 4A/Line
  • Ambient temp.: -40 To 65C
  • Hipot(L-G) : 1000VDC(prior to installing discharge resistors)
  • Discharge volt. (@250v) : <30v in 30s
  • Performance : 100dB (14KHZ TO 20GHZ)
  • Line terminals : M5 STUDS
  • Load terminals : 18GA wires
  • Typ. weight, LB(KG) : 15(6.8)

ADDITIONAL DETAILS:


1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory

DOWNLOAD SHEET
PFMF800LT-8
Posted on

PFMF850DLT-2, 2-LINE, 5A

PFMF850DLT-2
2-LINE DATA SCIF/FACILITY FILTER
(E.G. AC MINI-SPLIT, DIGITAL ALARM)
DC-140KHZ PASSBAND
600/300 OHMS (L-L/L-G)

SPECIFICATIONS

  • Max voltage: 0-250VAC/0-250VDC
  • Operating frequency: DC-60HZ
  • Rated current: 5A/Line
  • Ambient temp.: -40 To 65C
  • Hipot(L-G): 1000VDC
  • Performance: 100dB (3MHZ TO 20GHZ)
  • Line terminals: M5 STUDS
  • Load terminals: 18GA wires
  • Typ. weight, LBS(KG): 8(3.6)

ADDITIONAL DETAILS:


1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory

DOWNLOAD SHEET
pfmf850DLT-2
Posted on

PFMF850DLT-4, 4-LINE, 5A

PFMF850DLT-4
4-LINE DATA SCIF/FACILITY FILTER
(E.G. AC MINI-SPLIT, DIGITAL ALARM)
DC-140KHZ PASSBAND
600/300 OHMS (L-L/L-G)

SPECIFICATIONS

  • Max voltage : 0-250VAC/0-250VDC
  • Operating frequency : DC-60HZ
  • Rated current : 5A/Line
  • Ambient temp .: -40 To 65C
  • Hipot(L-G) : 1000VDC
  • Performance : 100dB (3MHZ TO 20GHZ)
  • Line terminals : M5 STUDS
  • Load terminals : 18GA wires
  • Typ. weight, LBS(KG) : 11(5)

ADDITIONAL DETAILS:


1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory

DOWNLOAD SHEET
PFMF850DLT-4
Posted on

PFMF850DLT-8, 8-LINE, 5A

PFMF850DLT-8
8-LINE DATA SCIF/FACILITY FILTER
(E.G. AC MINI-SPLIT, DIGITAL ALARM)
DC-140KHZ PASSBAND
600/300 OHMS (L-L/L-G)

SPECIFICATIONS

  • Max voltage : 0-250VAC/0-250VDC
  • Operating frequency : DC-60HZ
  • Rated current : 5A/Line
  • Ambient temp .: -40 To 65C
  • Hipot (L-G) : 1000 VDC
  • Performance : 100dB (3MHZ TO 20GHZ)
  • Line terminals : M5 STUDS
  • Load terminals : 18GA wires
  • Typ. weight, LBS(KG) : 15(6.8)

ADDITIONAL DETAILS:


1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory

DOWNLOAD SHEET
PFMF850DLT-8
