PFMF301S-100
1-LINE SCIF/TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV DIRECTIVE

DOWNLOAD SHEET
PFMF301S-100 SPEC

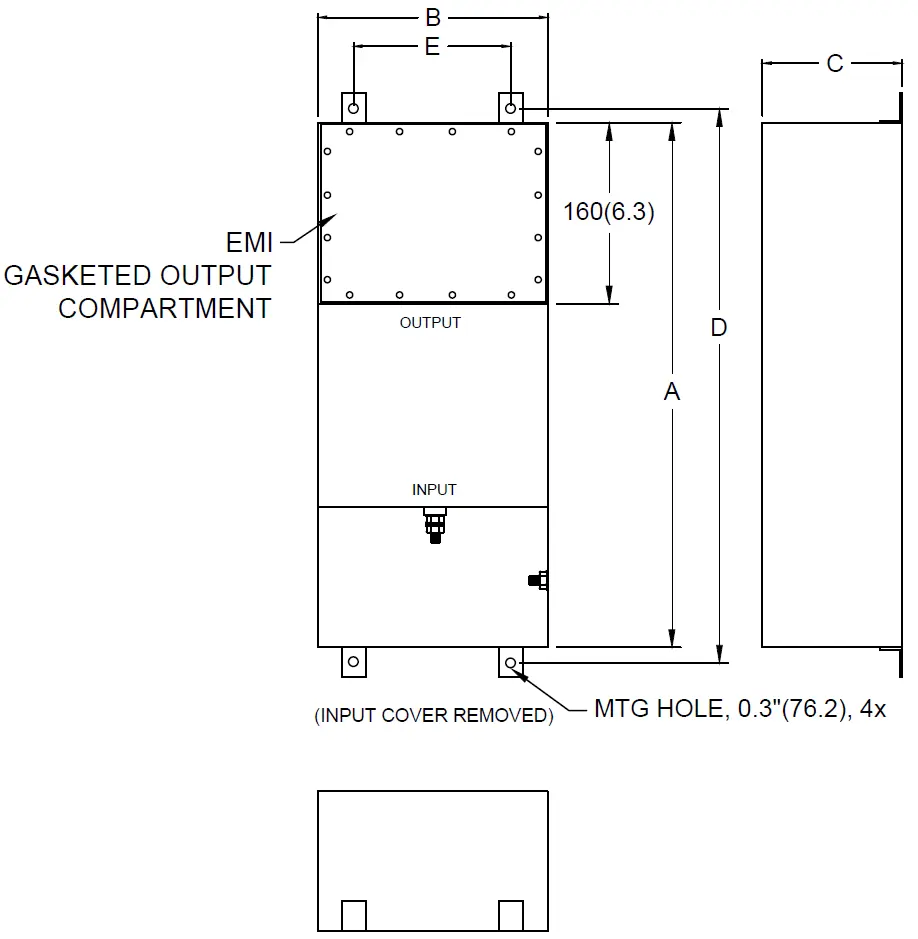

NOTES:
1. FOR DIFFERENT CUTOUTS, CONSULT FACTORY.
2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMF301S-100 100 M10
  • 838
  • 152
  • 160
  • 876
  • 102
  • 76
  • 82.6
  • 35
 25 (11.4)
  • (33)
  • (6)
  • (6.0)
  • (34.5)
  • (4)
  • (3)
  • (3.25)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE
