PFMF301S-150
1-LINE SCIF/TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277VAC
  • Max current: 150A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (14KHZ TO 40GHZ)
  • Shielding Effectiveness: >100dB (14KHZ TO 40GHZ)
  • Enclosure: Nema 1 (16GA Minimum)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285
LV DIRECTIVE

DOWNLOAD SHEET

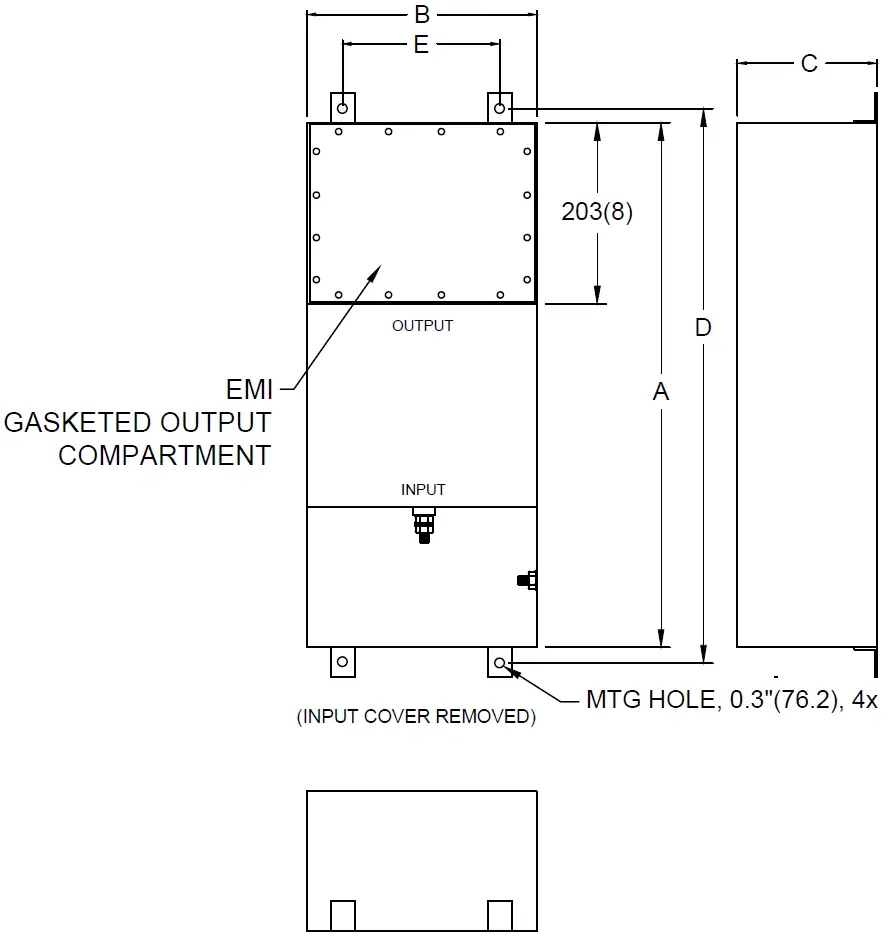

PFMF301S-150
NOTES:
  1. CONDUIT CUTOUTS BY END USER.
  2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG)
  • A
  • B
  • C
  • D
  • E
PFMF301S-150 150 M10
  • 914
  • 178
  • 203
  • 952.5
  • 127
 55 (25)
  • (36)
  • (7)
  • (8)
  • (37.5)
  • (5)

SPECIFICATIONS SUBJECT TO CHANGE
