PFMF301S-250
1-LINE + GROUND SCIF/TEMPEST FILTER
SPECIFICATIONS
- Max voltage: 0-277VAC
- Max current: 250A/Line
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot (L-G): 2200VDC
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% max at full rated unity load
- Overload: 140% rated current for 15 minutes
- Performance: 100dB (14KHZ to 40GHZ)
- Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive
NOTES:
1. FOR DIFFERENT CUTOUTS, CONSULT FACTORY.
2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER
INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.

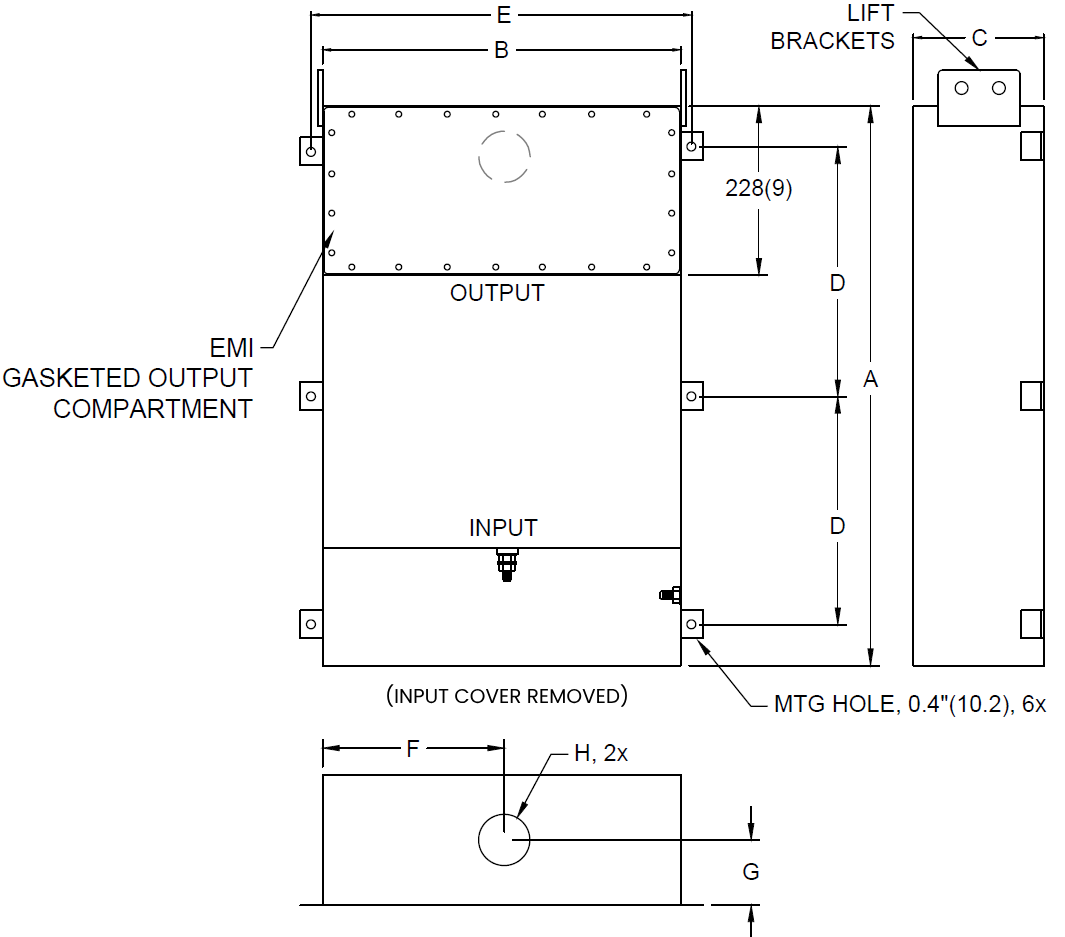

| MODEL | AMPS | TERMINAL | DIMENSIONS, MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
|
||||
| PFMF301S-250 | 250 | M12 |
|
80 (36.4) |
|
