PFMF302S-100
2-LINE + GND SCIF/TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 100A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (14KHZ TO 40GHZ)
  • Shielding Effectiveness: >100dB (14KHZ TO 40GHZ)
  • Enclosure: Nema 1 (16GA Minimum)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285
LV DIRECTIVE

DOWNLOAD SHEET
PFMF302S-100

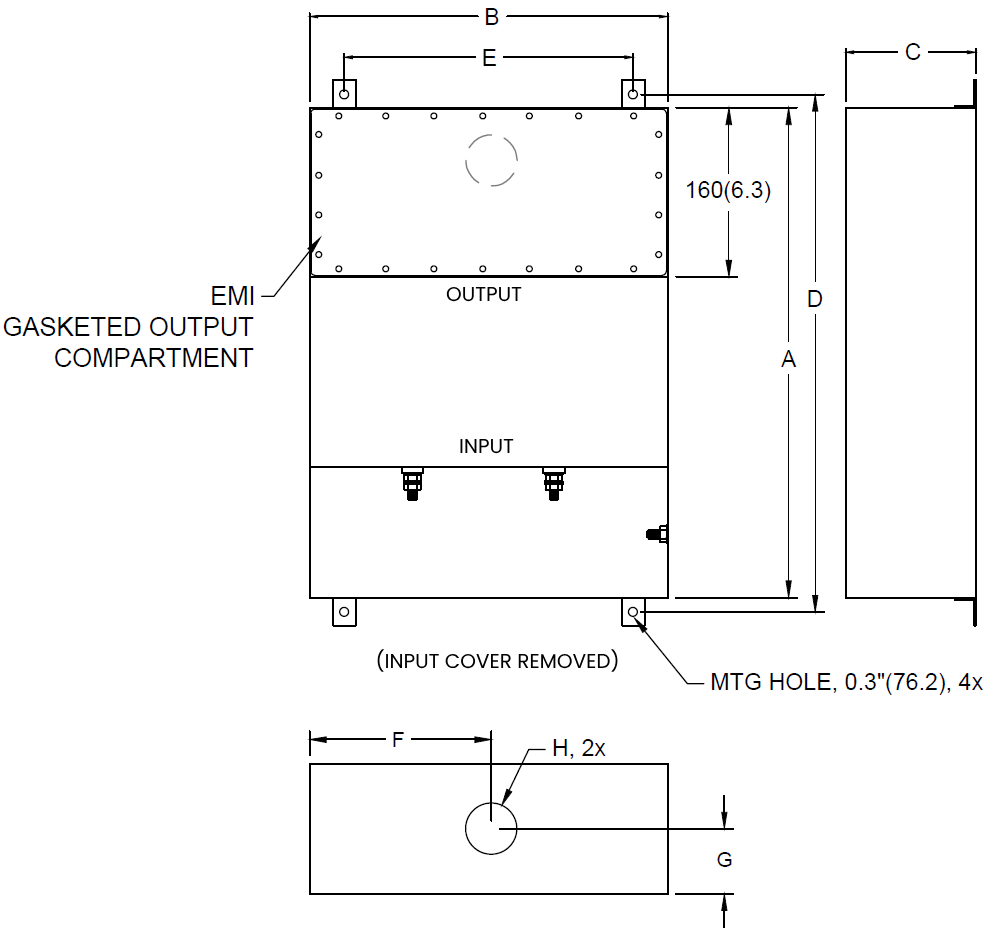

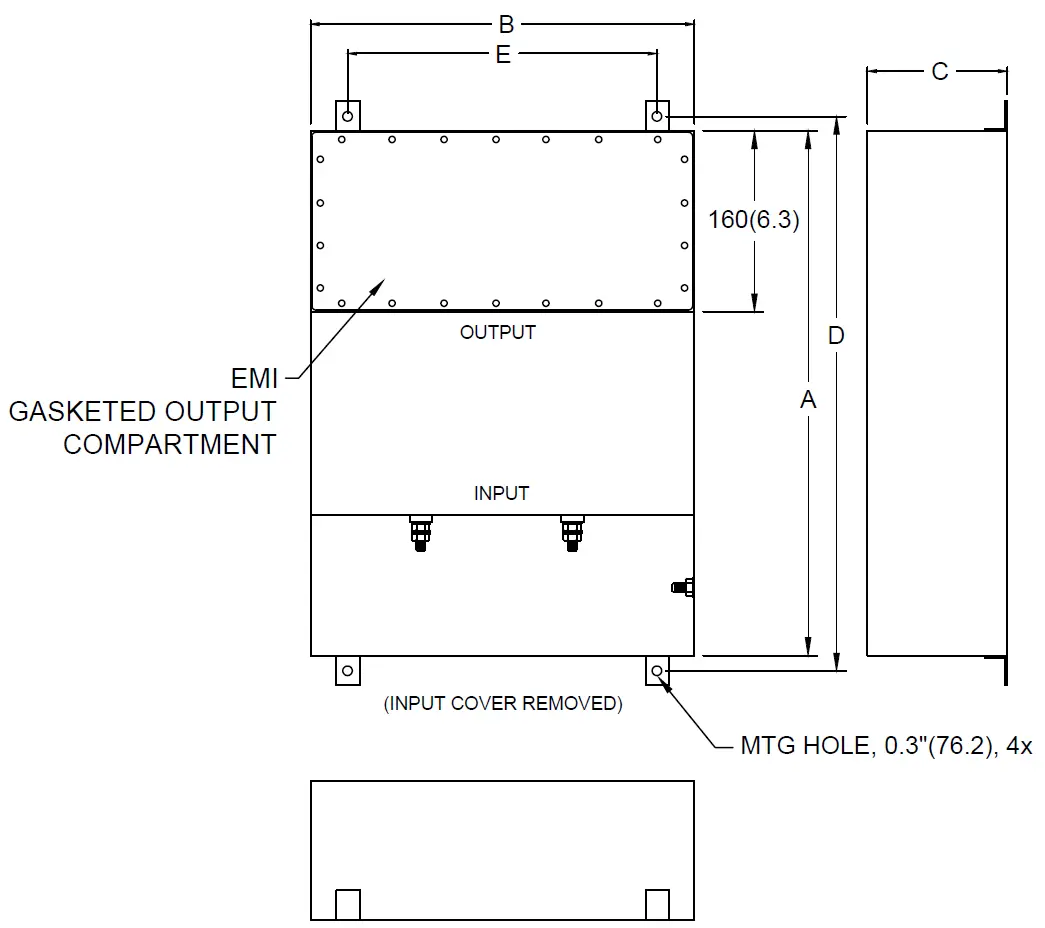

NOTES:
  1. CONDUIT CUTOUTS BY END USER.
  2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
  3. FILTER PROVIDED WITH QTY 4 CIRCULAR EMI GASKETS.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG)
  • A
  • B
  • C
  • D
  • E
PFMF302S-100 100 M10
  • 838
  • 305
  • 160
  • 876
  • 255
 65 (29.5)
  • (33)
  • (12)
  • (6.3)
  • (34.5)
  • (10)

SPECIFICATIONS SUBJECT TO CHANGE
