PFMF302S-63
2-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
PFMF302S-63

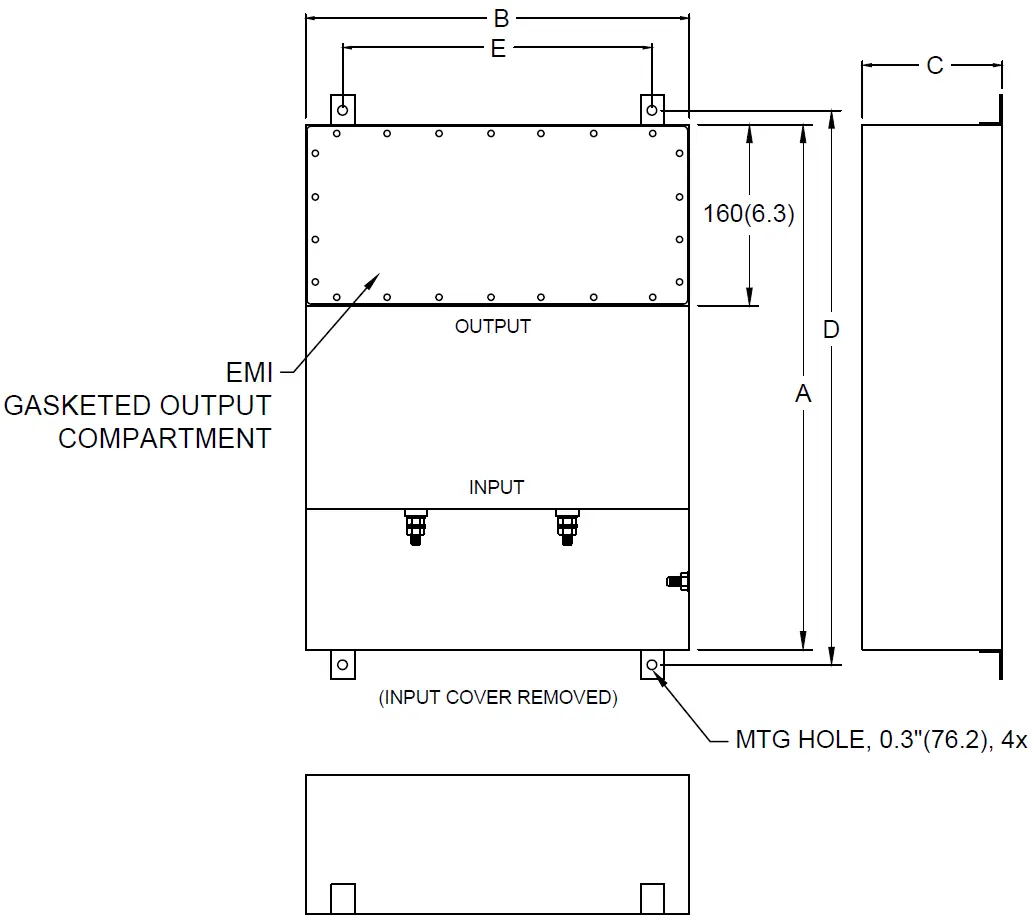

(FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMF302S-63 63 M10
  • 838
  • 305
  • 165
  • 876
  • 255
  • 153
  • 83
  • 50
 65 (29.5)
  • (33)
  • (12)
  • (6.5)
  • (34.5)
  • (10)
  • (6)
  • (3.27)
  • (2)

SPECIFICATIONS SUBJECT TO CHANGE
