PFMF332S-63
3-LINE + GROUND SCIF/TEMPEST FILTER
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current: 63A/Line
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot (L-G): 2200VDC (prior to installing discharge resistors)
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% max at full rated unity load
- Overload: 140% rated current for 15 minutes
- Performance: >100dB (14KHZ TO 40GHZ)
- Shielding Effectiveness: >100dB (14KHZ TO 40GHZ)
- Enclosure: Nema 1 (16GA Minimum)
- Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285
LV DIRECTIVE
NOTES:
- CONDUIT CUTOUTS BY END USER.
- FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
- FILTER PROVIDED WITH QTY 4 CIRCULAR EMI GASKETS.

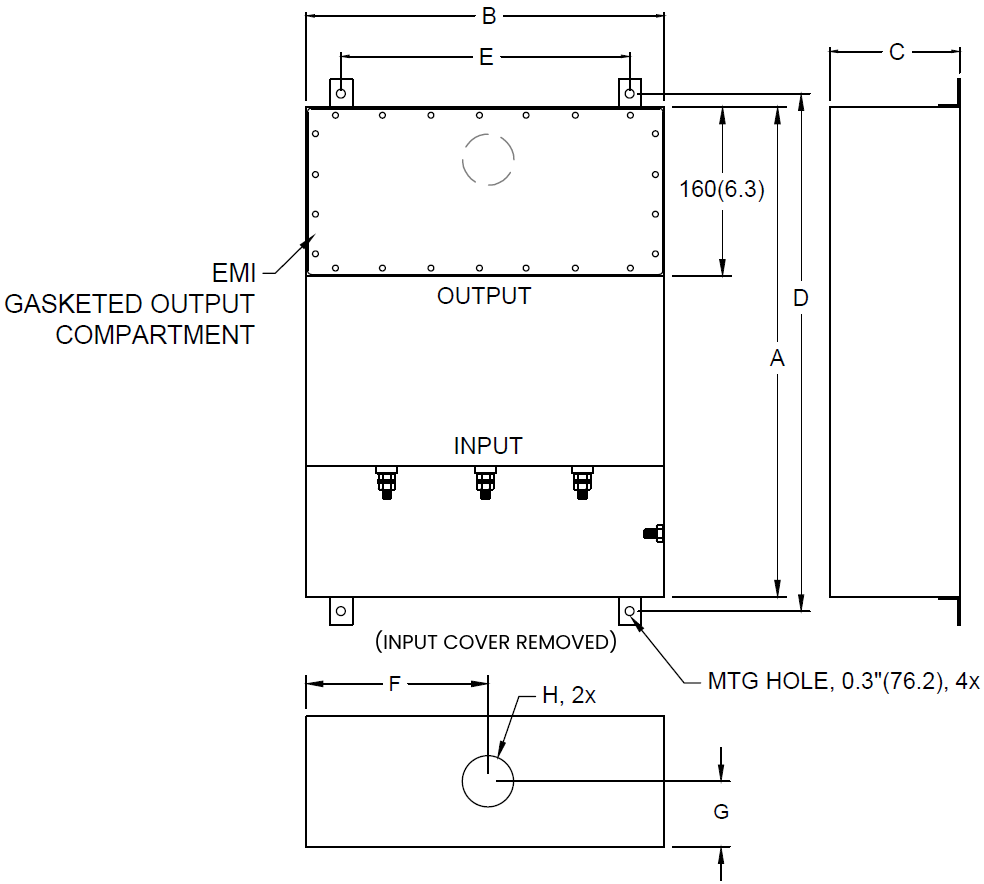

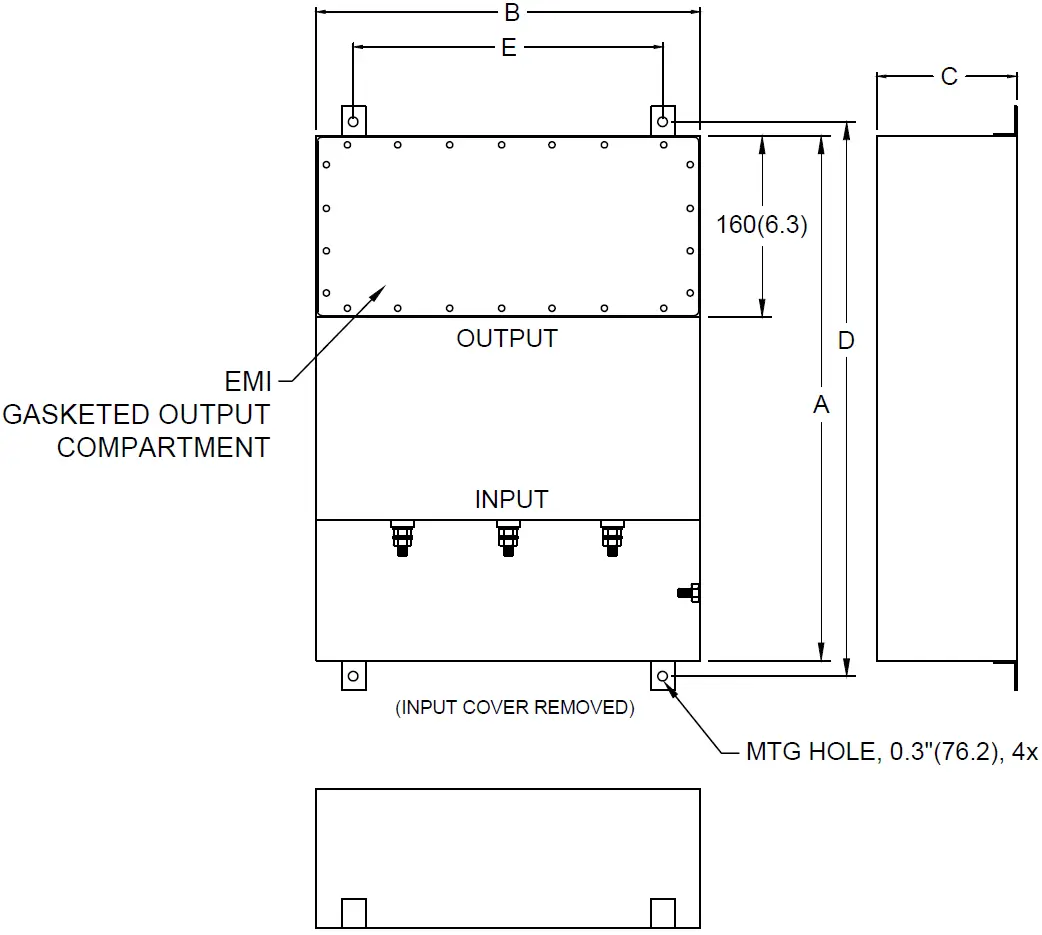

| MODEL | AMPS | TERMINAL | DIMENSIONS, MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
|
||||
| PFMF332S-63 | 63 | M10 |
|
117 (53.2) |
|
