PFMF342S-250
4-LINE + GROUND SCIF/TEMPEST FILTER
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current/Line: 250A
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot(Line-Ground): 2200VDC
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% at full rated unity load
- Overload: 140% of rated current for 15 minutes
- Harmonic distortion: 2.5% MAX (UNITY PF LOAD)
- Performance: >100dB (14KHZ TO 40GHZ)
- Shielding effectiveness: >100dB (14KHZ TO 40GHZ)
- Enclosure: NEMA 1 (14GA MINIMUM)
- Manufactured in accordance with the following standards:
MIL-STD-220
MI-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285
LV DIRECTIVE
NOTES:
1. CONDUIT CUTOUTS BY END USER.
2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.

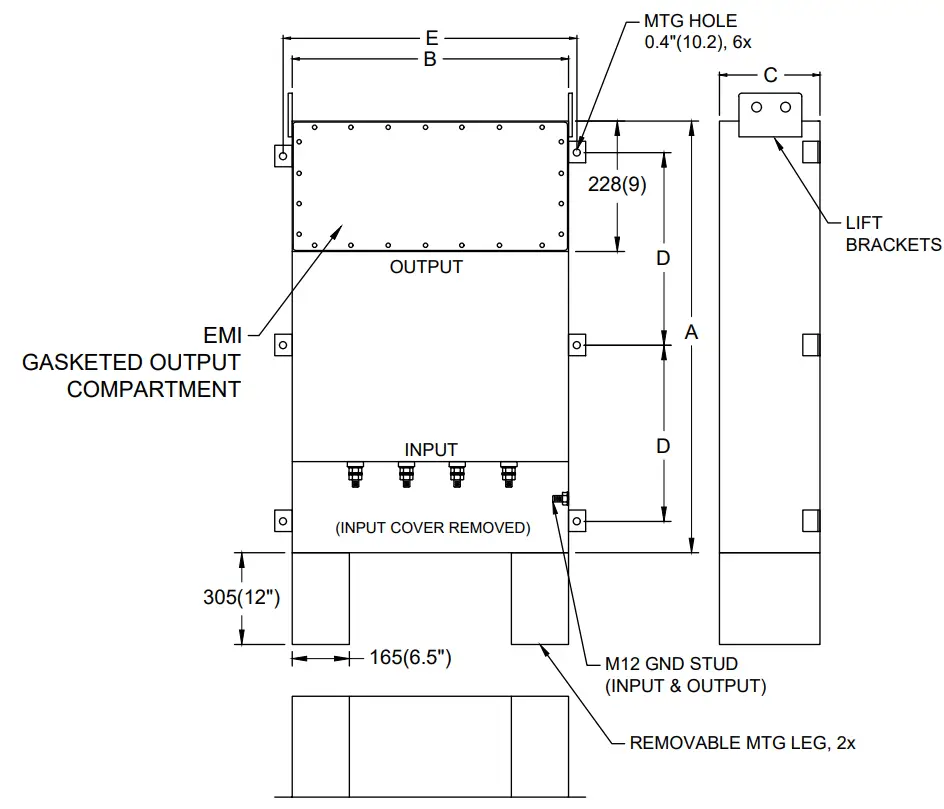

| MODEL | AMPS | TERMINAL | DIMENSIONS, MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
| ||||
| PFMF342S-250 | 250 | M12 |
| 285 (129.5) |
|
