PFMF342S-63
4-LINE + GROUND SCIF/FACILITY FILTER
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current/Line: 63A
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot(Line-Ground): 2200VDC
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% at full rated unity load
- Overload: 140% of rated current for 15 minutes
- Performance: 100dB (14KHZ to 40GHZ)
- Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive
(FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY)

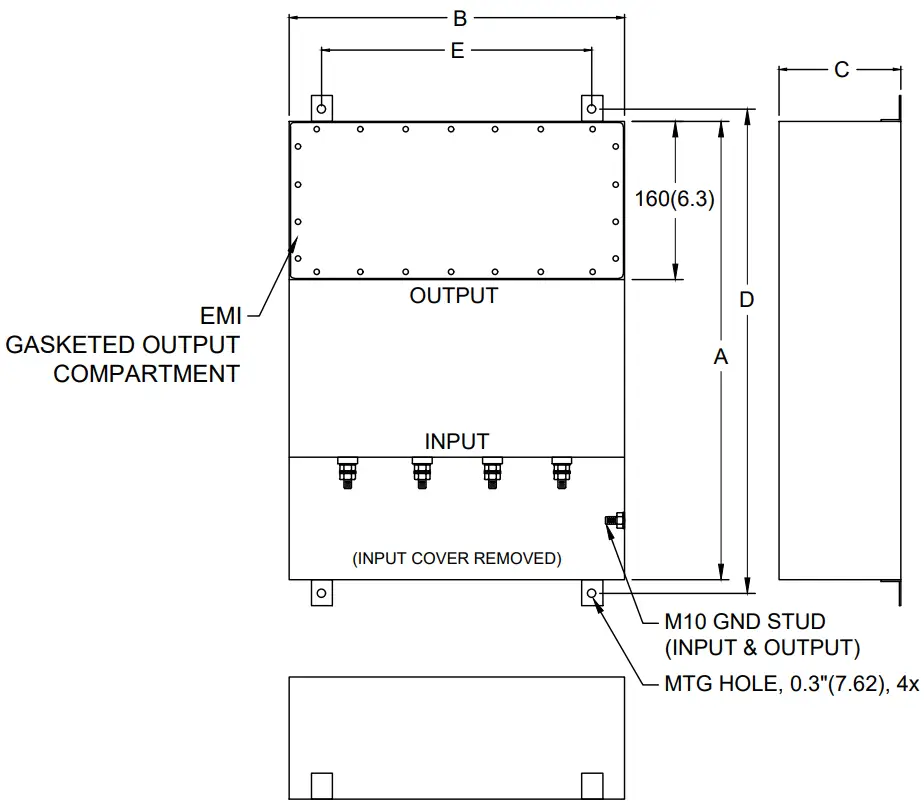

| MODEL | AMPS | TERMINAL | DIMENSIONS, MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
| ||||
| PFMF342S-63 | 63 | M10 |
| 145 (66) |
|
