PFMF370-1000-1
1-LINE + GND SCIF/FACILITY FILTER
SPECIFICATIONS
Max voltage: 0-277VAC
Max current: 1000A/Line
Frequency: 50/60HZ
Operating temp.: -40 to 65C
Hipot (L-G): 2200VDC (prior to installing discharge resistors)
Discharge volt. (@277V): <30V in 30s
Volt. drop: <2% max at full rated unity load
Overload: 140% rated current for 15 minutes
Performance: 100dB (14KHZ to 40GHZ)
Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive
DOWNLOAD SHEET

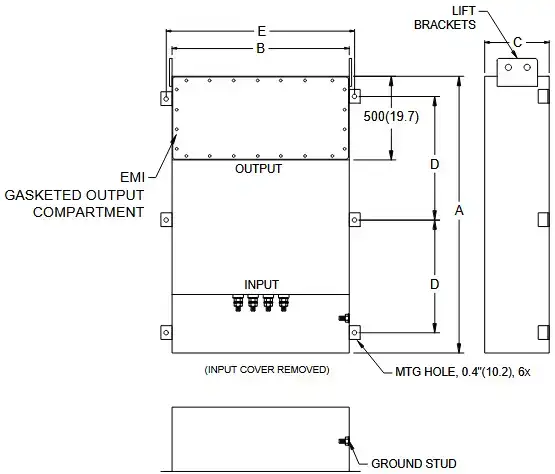

INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL
AMPS
TERMINAL
DIMENSIONS - MM(IN)
WEIGHT LBS(KG)
A
B
C
D
E
PFMF370-1000-1
1000
4xM16
2235
355
508
1016
406
530(241)
(88)
(14)
(20)
(40)
(16)
SPECIFICATIONS SUBJECT TO CHANGE
