PFMF370-16-3 3-LINE + GND SCIF/FACILITY FILTER
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current: 16A/Line
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot (L-G): 2200VDC (prior to installing discharge resistors)
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% max at full rated unity load
- Performance: 100dB (14KHZ to 40GHZ)
- Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
Lv Directive
INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
PREMIER CAN ADD CUTOUTS SPECIFIED AT TIME OF ORDERING.

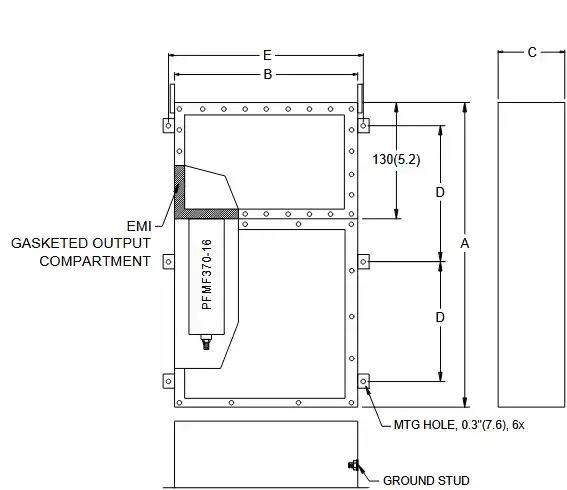

| MODEL | AMPS | TERMINAL | DIMENSIONS - MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
|
||||
| PFMF370-16-3 | 16 | M6 |
|
120 (54.5) |
|
