PFMF370-250-3
3-LINE + GND SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 250A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
370-250-3

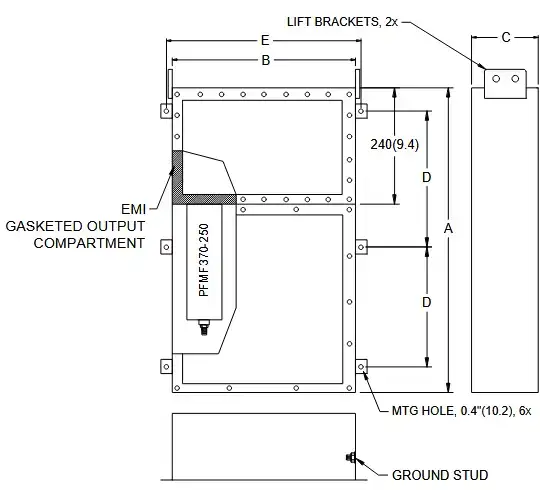

INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LBS(KG) MOUNTING LEGS
  • A
  • B
  • C
  • D
  • E
 (OPTIONAL)
PFMF370-250-3 250 M12
  • 1219
  • 685
  • 254
  • 559
  • 735
 460 (209) 370250ML
  • (48)
  • (27)
  • (10)
  • (22)
  • (29)

SPECIFICATIONS SUBJECT TO CHANGE
