PFMF370-32-4
4-LINE + GND SCIF/FACILITY FILTER
SPECIFICATIONS
Max voltage: 0-277/0-480VAC
Max current: 32A/Line
Frequency: 50/60HZ
Operating temp.: -40 to 65C
Hipot (L-G): 2200VDC (prior to installing discharge resistors)
Discharge volt. (@277V): <30V in 30s
Volt. Drop: <2% max at full rated unity load
Overload: 140% rated current for 15 minutes
Performance: 100dB (14KHZ to 40GHZ)
Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive
DOWNLOAD SHEET

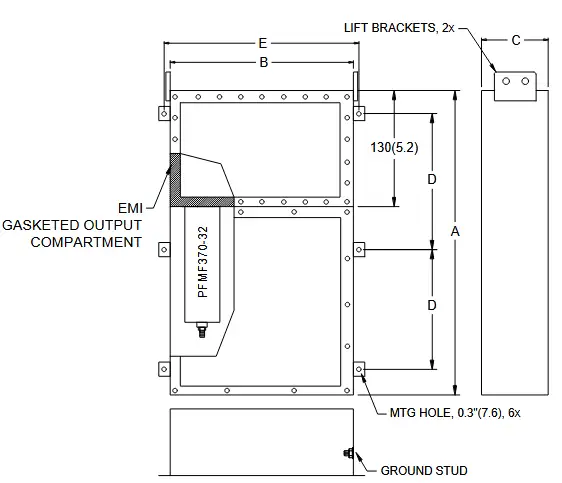

INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER.
MODEL
AMPS
TERMINAL
DIMENSIONS (MM)
WEIGHT LBS(KG)
A
B
C
D
E
PFMF370-32-4
32
M6
813
550
132
356
588
175 (79.5)
(32)
(21.7)
(5.2)
(14)
(21)
SPECIFICATIONS SUBJECT TO CHANGE
