PFMF370-800-4
4-LINE + GND SCIF/TEMPEST FILTER
FLOOR MOUNTING
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current: 800A/Line
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot (L-G): 2200VDC (prior to installing discharge resistors)
- Discharge volt. (@277V): <30V in 30s
- Volt. drop: <2% max at full rated unity load
- Overload: 140% rated current for 15 minutes
- Performance: 100dB (14KHZ to 40GHZ)
- Manufactured in accordance with the following standards:
MIL-STD-220
MIL-F-15733
MIL-STD-810
LV DIRECTIVE

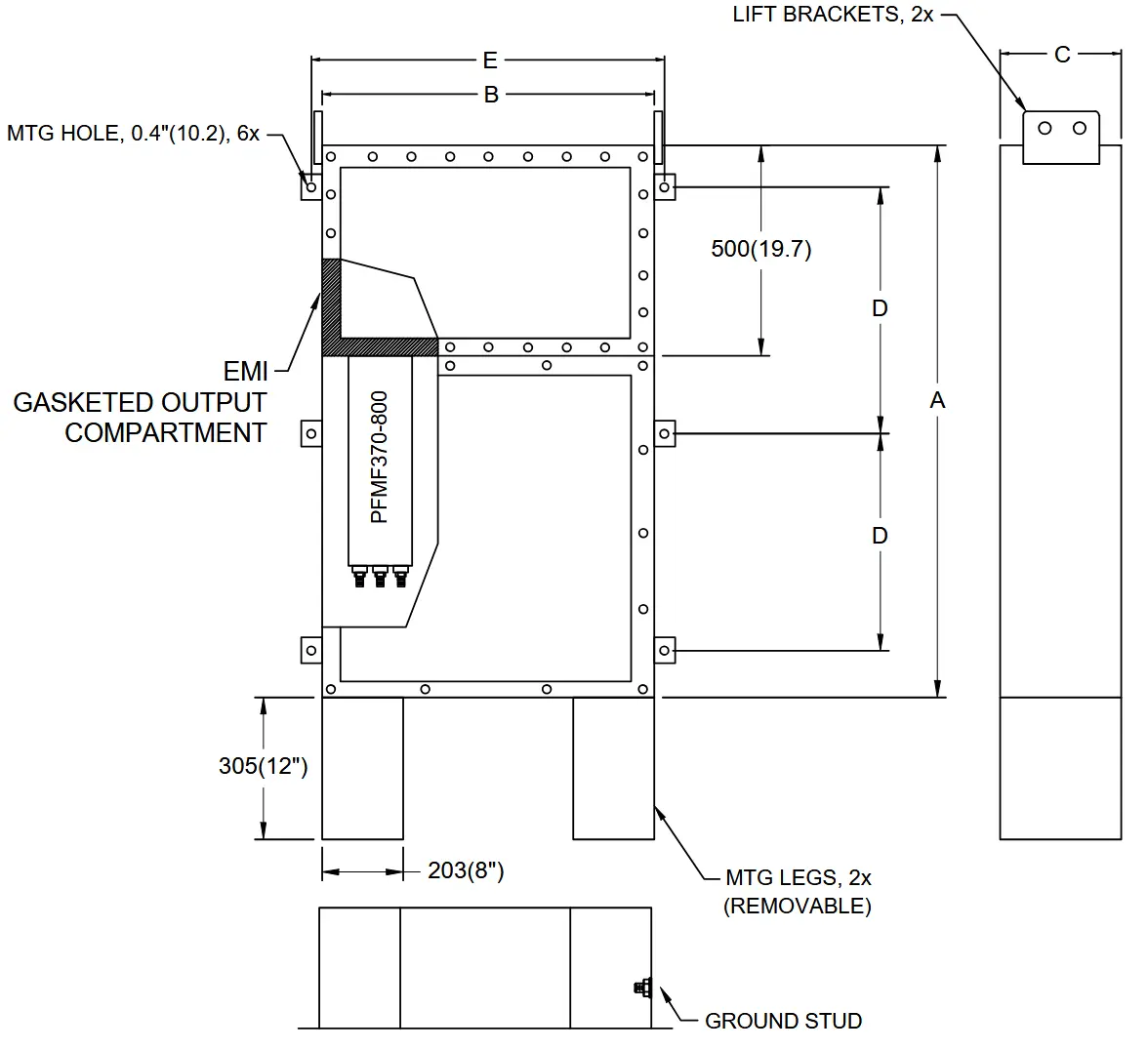

NOTES:
1. CONDUIT CUTOUTS BY END USER.
2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER
INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
| MODEL | AMPS | TERMINAL | DIMENSIONS - MM(IN) | WEIGHT LBS(KG) |
|---|---|---|---|---|
|
||||
| PFMF370-800-4 | 800 | 3xM16 |
|
1250 (568) |
|
