PFMF855DLT-8
8-LINE DATA SCIF/FACILITY FILTER
(E.G. 14/2 DIGITAL FIRE ALARM,
AC MINI-SPLIT, ETC.)
DC-140KHZ PASSBAND
600/300 OHMS (L-L/L-G)
SPECIFICATIONS
- Max voltage : 0-250VAC/0-250VDC
- Operating frequency : DC-60HZ
- Rated current : 10A/Line
- Ambient temp.: -40 To 65C
- Hipot(L-G) : 1000VDC

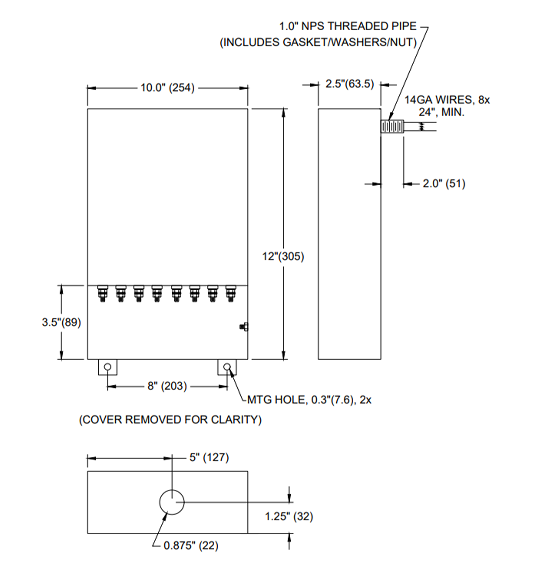

- I/P terminals : M5 STUDS
- O/P terminals : 14GA / 105C WIRES
- Performance : 100dB (3MHZ TO 20GHZ)
- Typ. weight, LBS(KG) : 15(6.8)
ADDITIONAL DETAILS:
1. For indoor controlled environments
2. All EMI seams 100% welded
3. For different conduit cutout or hole location, consult factory
