PFMH1000-63-1
1-LINE + GND HEMP FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 63A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (Prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30S
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Current harmonics: <2.5% (Unity PF load)
  • RF/Shielding effectiveness: >100dB (14KHZ TO 10GHZ)
  • Enclosure: Nema 1 (16GA Minimum)
  • Designed and manufactured in accordance with the following standards:

MIL-STD-188-125-1A
MIL-STD-220
MIL-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285

DOWNLOAD SHEET

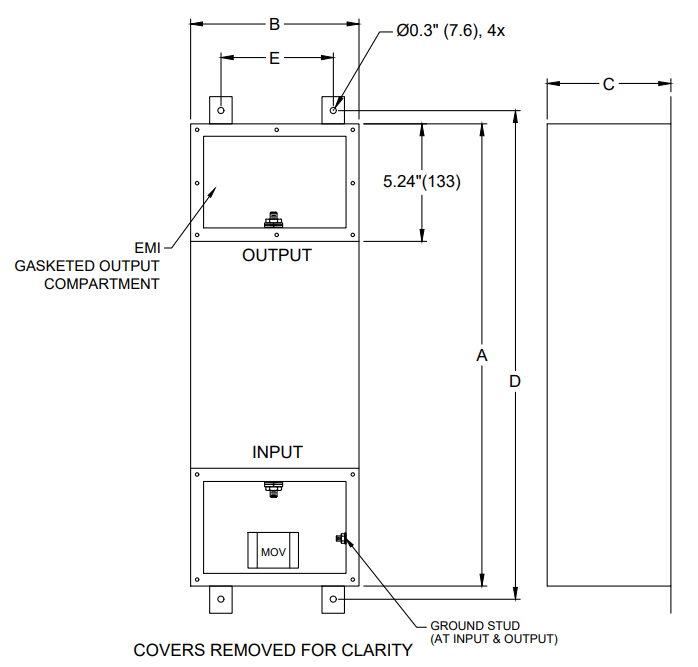

MODEL / PN AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMH1000-63-1 63 M10
  • 627
  • 169
  • 183
  • 158
  • 118
 50 (22.7)
  • 24.7
  • 6.65
  • 7.2
  • 6.2
  • 4.65

SPECIFICATIONS SUBJECT TO CHANGE
