PFMH1000-800-3
3-LINE + GND HEMP FILTER
SPECIFICATIONS
- Max voltage: 0-277/0-480VAC
- Max current: 800A/Line
- Frequency: 50/60HZ
- Operating temp.: -40 to 65C
- Hipot (L-G): 2200VDC (Prior to installing discharge resistors)
- Discharge volt. (@277V): <30V in 30S
- Volt. drop: <2% max at full rated unity load
- Overload: 140% rated current for 15 minutes
- Current harmonics: <2.5% (Unity PF load)
- RF/Shielding effectiveness: >100dB (14KHZ to 10GHZ)
- Enclosure: Nema 1 (14GA Minimum)
- Designed and manufactured in accordance with the following standards:
MIL-STD-188-125-1A
MIL-STD-220
MIL-F-15733
MIL-STD-810
MIL-STD-202
MIL-STD-285

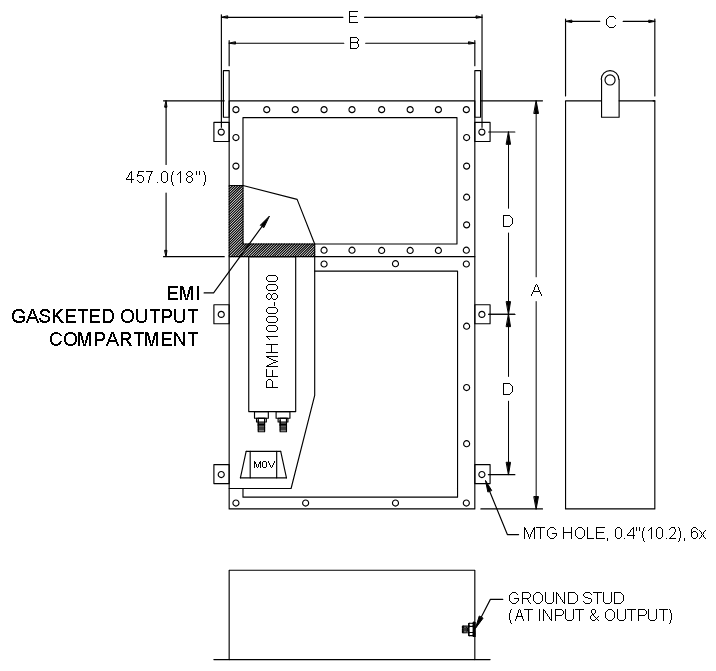

CONDUIT CUTOUTS BY END USER
| MODEL / PN | AMPS | TERMINAL | DIMENSIONS (MM) | WEIGHT LBS(KG) |
|---|---|---|---|---|
| ||||
| PFMH1000-800-3 | 800 | 2xM16 |
| 1080 (490.9) |
|
