PFMT355S-600
3-LINE + GND TEMPEST FILTER
INPUT/OUTPUT EMI COMPARTMENTS

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current: 600A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 TO 70C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V IN 30S
  • Overload: 140% rated current for 15 minutes
  • Performance: >100dB (10KHZ TO 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET

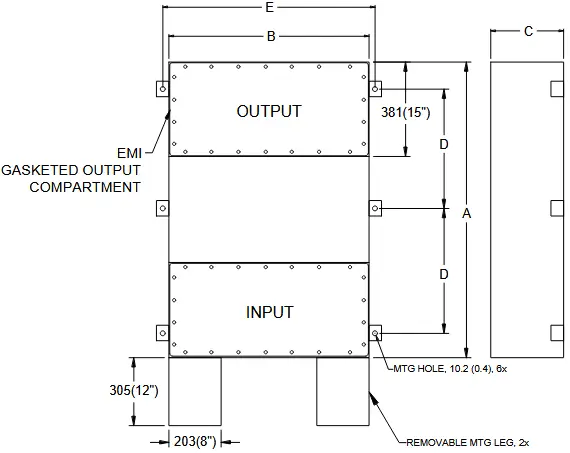

NOTE: LIFT BRACKETS PROVIDED ON CABINET

355S-400
MODEL AMPS TERMINALS DIMENSIONS - MM(IN) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
PFMT355S-600 600 2xM16
  • 1575
  • 508
  • 381
  • 686
  • 559
 695(315.9)
  • (62)
  • (20)
  • (15)
  • (27)
  • (22)

SPECIFICATIONS SUBJECT TO CHANGE
