PFMF301S-20
1-LINE SCIF/FACILITY FILTER

SPECIFICATIONS

  • Max voltage: 0-277VAC
  • Max current: 20A/Line
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot (L-G): 2200VDC (prior to installing discharge resistors)
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% max at full rated unity load
  • Overload: 140% rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MIL-F-15733
MIL-STD-810
LV Directive

DOWNLOAD SHEET
PFMF301S-20

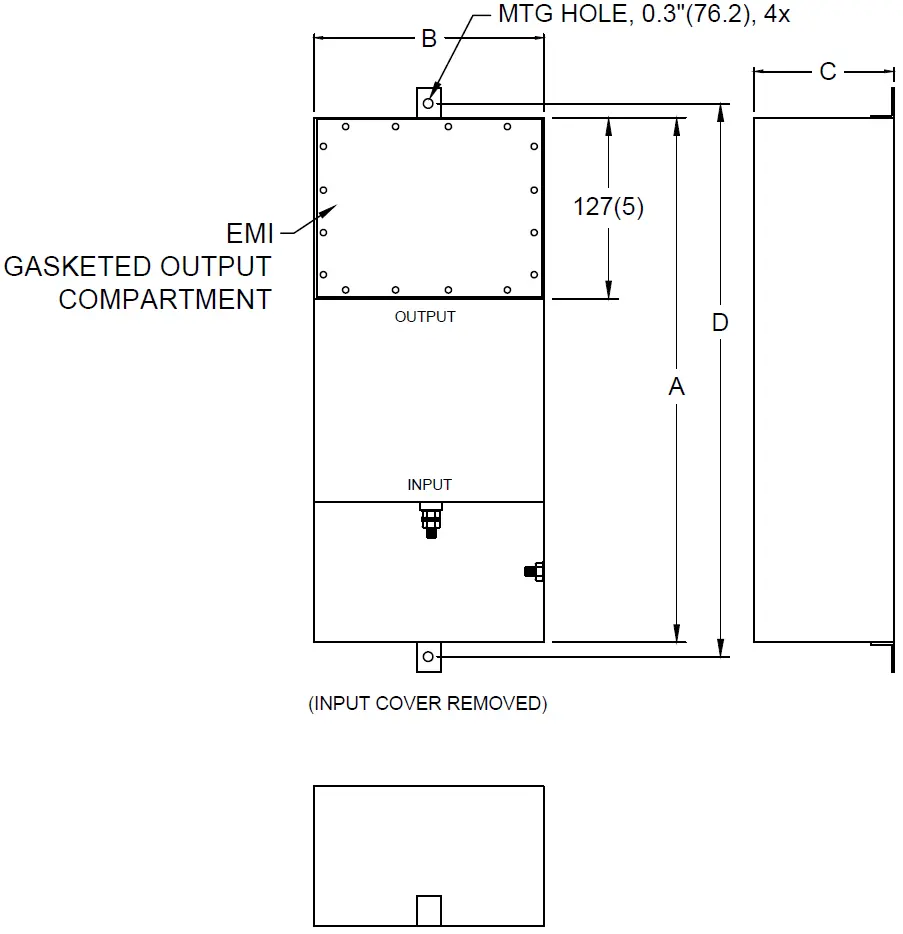

(FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY)
MODEL AMPS TERMINAL DIMENSIONS, MM(IN) WEIGHT LB(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
PFMF301S-20 20 M6
  • 508
  • 102
  • 127
  • 546
  • 51
  • 63.5
  • 35
 15 (6.8)
  • (20)
  • (4)
  • (5)
  • (21.5)
  • (2)
  • (2.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE
