PFMF342S-100
4-LINE + GROUND SCIF/TEMPEST FILTER
SPECIFICATIONS
Max voltage: 0-277/0-480VAC
Max current/Line: 100A
Frequency: 50/60HZ
Operating temp.: -40 to 65C
Hipot(Line-Ground): 2200VDC
Discharge volt. (@277V): <30V in 30s
Volt. drop: <2% at full rated unity load
Overload: 140% of rated current for 15 minutes
Performance: 100dB (14KHZ to 40GHZ)
Manufactured in accordance with the following standards:
MIL-STD-220
MI-F-15733
MIL-STD-810
LV DIRECTIVE
DOWNLOAD SHEET
NOTES:
1. FOR DIFFERENT CUTOUTS, CONSULT FACTORY.
2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
MODEL
AMPS
TERMINAL

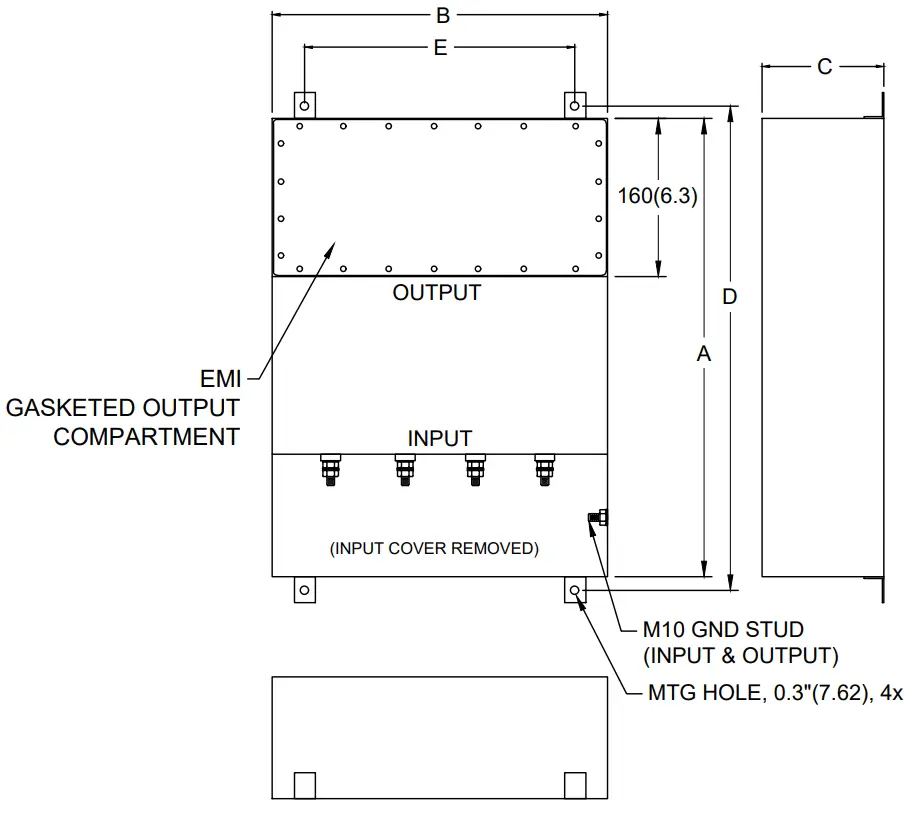

DIMENSIONS - MM(IN)
WEIGHT LBS(KG)
A
B
C
D
E
F
G
H
PFMF342S-100
100
M10
838
558
160
876
508
279
83
50
145 (66)
(33)
(22)
(6.3)
(34.5)
(20)
(11)
(3.27)
(1.97)
SPECIFICATIONS SUBJECT TO CHANGE
