PFMF342S-16
4-LINE + GROUND SCIF/TEMPEST FILTER

SPECIFICATIONS

  • Max voltage: 0-277/0-480VAC
  • Max current/Line: 16A
  • Frequency: 50/60HZ
  • Operating temp.: -40 to 65C
  • Hipot(Line-Ground): 2200VDC
  • Discharge volt. (@277V): <30V in 30s
  • Volt. drop: <2% at full rated unity load
  • Overload: 140% of rated current for 15 minutes
  • Performance: 100dB (14KHZ to 40GHZ)
  • Manufactured in accordance with the following standards:

MIL-STD-220
MI-F-15733
MIL-STD-810
LV DIRECTIVE

DOWNLOAD SHEET
PFMF342S-16 SPEC
NOTES:
1. FOR DIFFERENT CUTOUTS, CONSULT FACTORY.

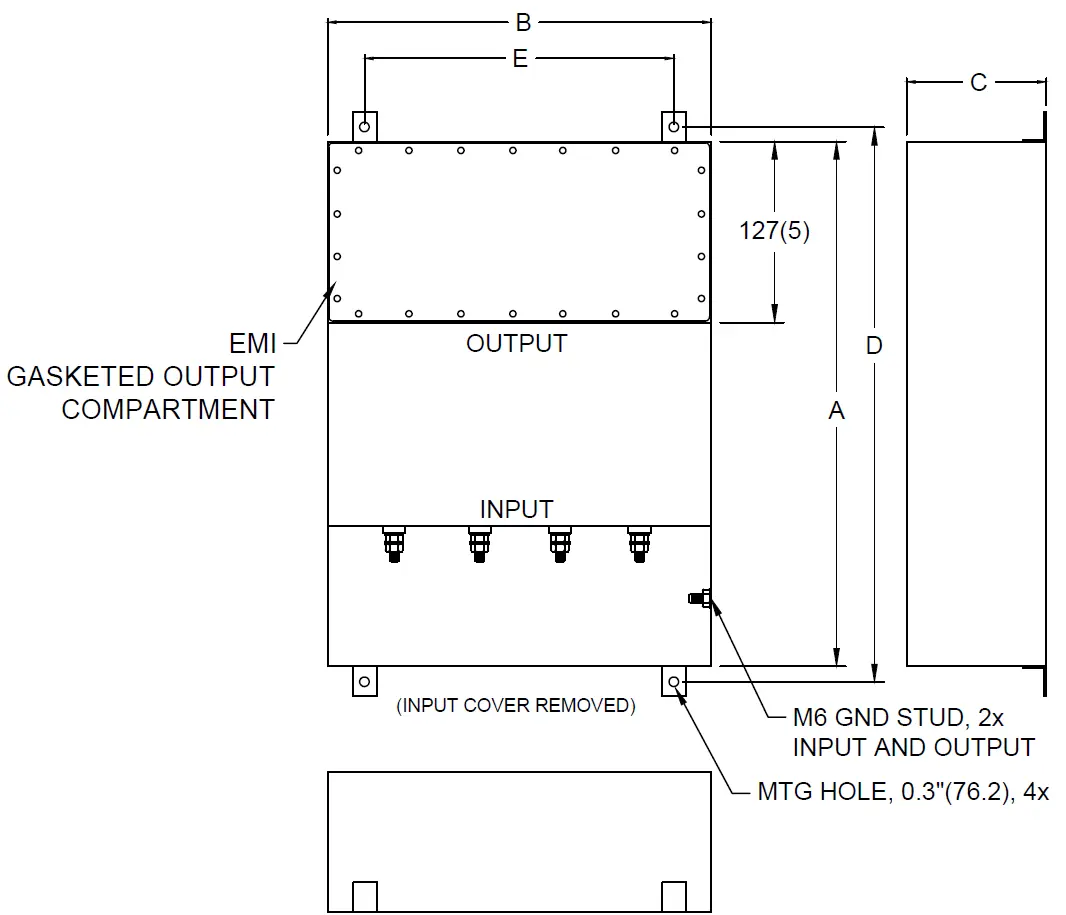

2. FILTER IS BIDIRECTIONAL. IF INSTALLING FILTER INTERNAL TO SCIF RUN POWER INPUT WIRING INTO FILTER EMI GASKETED OUTPUT COMPARTMENT.
MODEL AMPS TERMINAL DIMENSIONS (MM) WEIGHT LBS(KG)
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMF342S-16 16 M6
  • 610
  • 381
  • 127
  • 648
  • 331
  • 191
  • 63
  • 35
 58 (26.4)
  • (24)
  • (15)
  • (5)
  • (25.5)
  • (13)
  • (7.5)
  • (2.5)
  • (1.38)

SPECIFICATIONS SUBJECT TO CHANGE
