PFMH1000-4000-2
2-LINE + GND HEMP FILTER

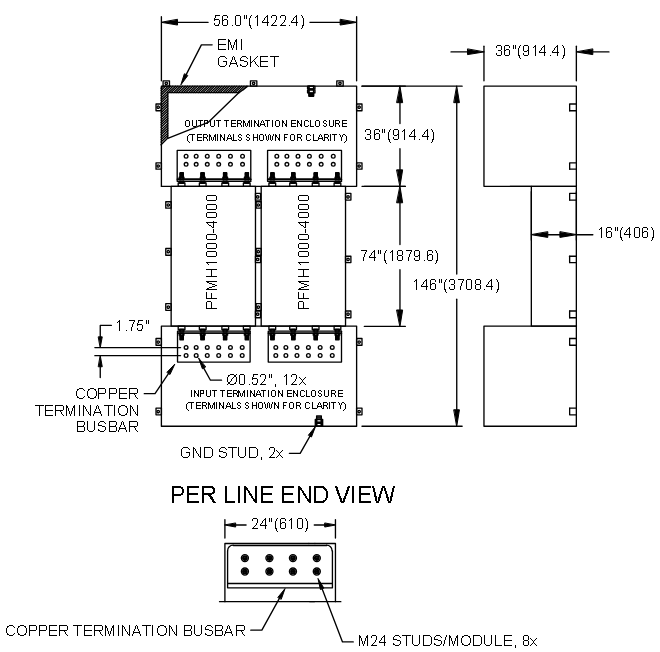

INDIVIDUAL MODULES WITH END TERMINATION BOXES
SPECIFICATIONS
- Voltage: 0-277/0-480VAC
- Current: 4000A/Line
- Frequency: 50/60HZ
- Oper. temp.: -40 to 65C
- Hipot (L-G): 2200VDC
- Discharge volt.: <30V in 30S
- Voltage drop: <2% at full rated unity load
- Overload: 140% rated current for 15 minutes
- Terminals: 8x24MM/Line with copper mounting bracket
- Est. weight, LB(KG): 3120(1418.2)
- Shielding effectiveness: >100dB (14KHZ to 10GHZ)
- Enclosure: Nema 1 (12GA Minimum)
- Manufactured in accordance with the following standards:
MIL-STD-188-125-1A
MIL-STD-220
MIL-STD-810
MIL-F-15733
MIL-STD-202
MIL-STD-285
SPECIFICATIONS SUBJECT TO CHANGE
